Create a plugin in cTrader

This article outlines the steps to create native plugins, including tools for algorithmic trading or manual operations in the cTrader ecosystem.

You can also learn how to create custom frame and custom window plugins, or develop plugins that appear in UI areas, such as Active Symbol Panel (ASP), Trade Watch (TW) or chart toolbar.

In the Plugins tab of the Algo app, click the New button to open the algorithm creation wizard.

Enter a name for your plugin, then select a programming language between C# and Python.

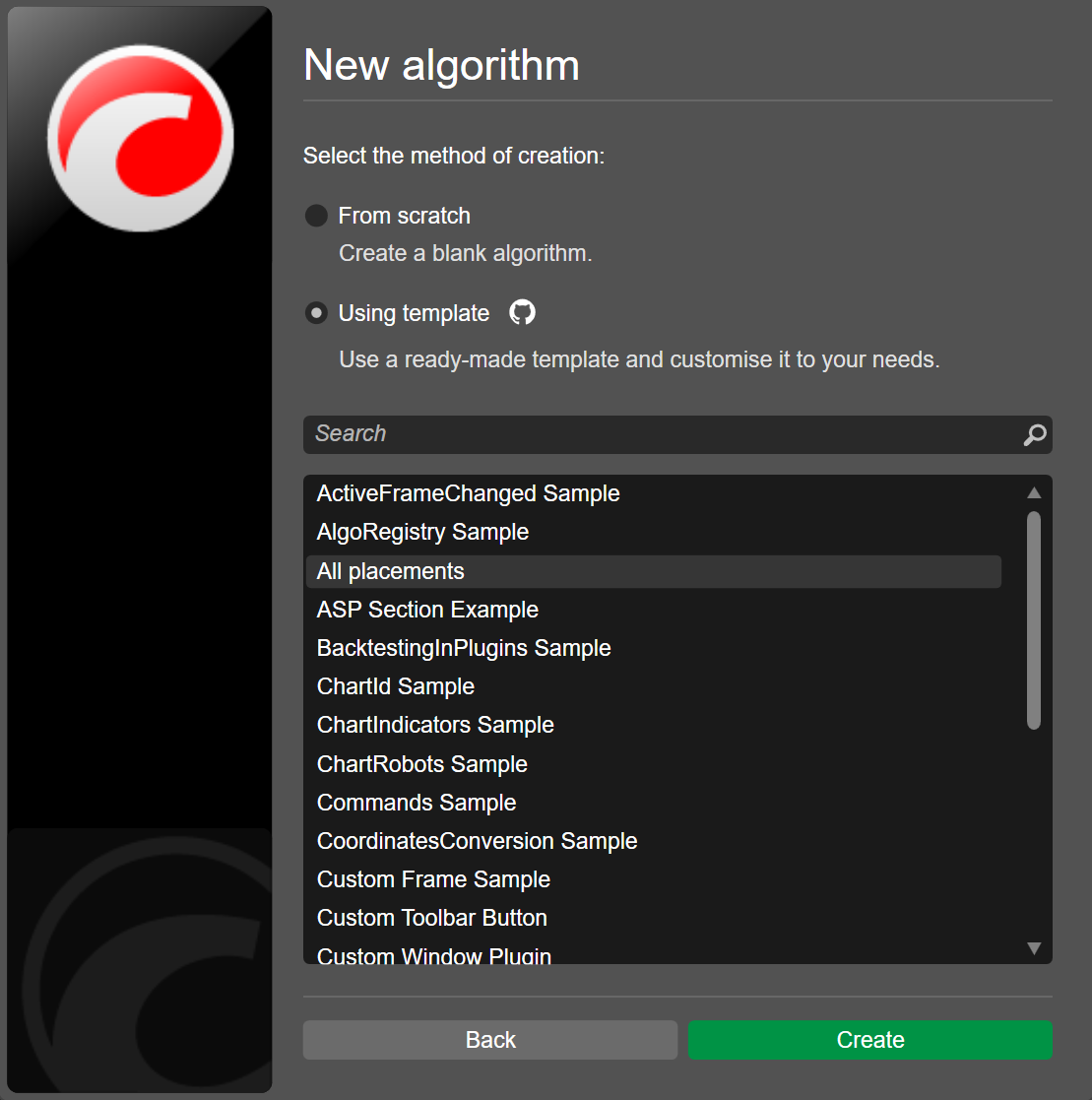

Select a creation method from:

  • From scratch – the new plugin will contain only a basic template.

  • Using a template – you will be able to select a premade algorithm from a list of Python# or C# templates, covering a wide range of plugin placements and functionalities.

Note

Premade plugins already contain placement and functionality logic. Such plugins are ready to work once you save and build them.

After you click Create, the code editor opens and you can start editing the plugin code.

Edit the code

The introduction to plugins showed that plugins can add new elements to the cTrader UI, including Active Symbol Panel (ASP), Trade Watch, chart area and custom windows. The plugin placement tutorial explains how to position them in these areas. Decide on the placement of your plugin's information or controls before writing any code.

Note

When deciding on placement, align the plugin's output with the most appropriate UI area. Chart frames work well for large WebViews, Active Symbol Panel is better for compact panels and Trade Watch is a strong option for repeated messages.

Depending on your creation method, the plugin code contains one or more of the following:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
[Plugin(AccessRights = AccessRights.None)]
public class SimplePlugin : Plugin
{
    const string WebViewUrl = "https://ctrader.com";

    protected override void OnStart()
    {
        var icon = new SvgIcon(@"
<svg class='w-6 h-6 text-gray-800 dark:text-white' aria-hidden='true' xmlns='http://www.w3.org/2000/svg' width='15' height='15' fill='none' viewBox='0 0 24 24'>
<path stroke='#BFBFBF' stroke-linecap='round' stroke-linejoin='round' stroke-width='2' d='M11 6.5h2M11 18h2m-7-5v-2m12 2v-2M5 8h2a1 1 0 0 0 1-1V5a1 1 0 0 0-1-1H5a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Zm0 12h2a1 1 0 0 0 1-1v-2a1 1 0 0 0-1-1H5a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Zm12 0h2a1 1 0 0 0 1-1v-2a1 1 0 0 0-1-1h-2a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Zm0-12h2a1 1 0 0 0 1-1V5a1 1 0 0 0-1-1h-2a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Z'/>
</svg>
");
        Commands.Add(CommandType.ChartContainerToolbar, OnIconClicked, icon);
    }

    private CommandResult OnIconClicked(CommandArgs args)
    {
        var buttonStyle = new Style();
        buttonStyle.Set(ControlProperty.Margin, new Thickness(0, 5, 0, 0));
        buttonStyle.Set(ControlProperty.Width, 150);
        var stackPanel = new StackPanel();

        var showMessageBoxButton = new Button { Text = "show MessageBox", Style = buttonStyle };
        showMessageBoxButton.Click += args =>
        {
            MessageBox.Show("Some message", "Caption", MessageBoxButton.YesNo);
        };
        stackPanel.AddChild(showMessageBoxButton);

        var showCustomWindowButton = new Button { Text = "show Custom Window", Style = buttonStyle };
        showCustomWindowButton.Click += args =>
        {
            var window = new Window();
            var webView = new WebView();
            window.Child = webView;

            window.Show();
            webView.NavigateAsync(WebViewUrl);
        };
        stackPanel.AddChild(showCustomWindowButton);

        var blockCounter = 1;
        var addAspBlockButton = new Button { Text = "add ASP Block", Style = buttonStyle };
        addAspBlockButton.Click += args =>
        {
            var newBlock = Asp.SymbolTab.AddBlock("One more block " + blockCounter);
            newBlock.IsExpanded = true;
            newBlock.Height = 600;
            blockCounter++;

            var webView = new WebView();
            newBlock.Child = webView;
            webView.NavigateAsync(WebViewUrl);
        };
        stackPanel.AddChild(addAspBlockButton);

        var aspTabCounter = 1;
        var addAspTabButton = new Button { Text = "add ASP Tab", Style = buttonStyle };
        addAspTabButton.Click += args =>
        {
            var tab = Asp.AddTab("ASP tab " + aspTabCounter);
            tab.Index = aspTabCounter;
            aspTabCounter++;

            var webView = new WebView();
            tab.Child = webView;
            webView.NavigateAsync(WebViewUrl);
        };
        stackPanel.AddChild(addAspTabButton);

        var tradewatchTabCounter = 1;
        var addTradeWatchTabButton = new Button { Text = "add TradeWatch Tab", Style = buttonStyle };
        addTradeWatchTabButton.Click += args =>
        {
            var tab = TradeWatch.AddTab("Tab " + tradewatchTabCounter);
            tab.Index = tradewatchTabCounter;
            tradewatchTabCounter++;
            tab.IsSelected = true;

            var webView = new WebView();
            tab.Child = webView;
            webView.NavigateAsync(WebViewUrl);
        };
        stackPanel.AddChild(addTradeWatchTabButton);

        var addCustomFrameButton = new Button { Text = "add Custom Frame", Style = buttonStyle };
        var customFrameCounter = 1;
        addCustomFrameButton.Click += args =>
        {
            var frame = ChartManager.AddCustomFrame("Custom Frame " + customFrameCounter);
            customFrameCounter++;

            var webView = new WebView();
            frame.Child = webView;
            webView.NavigateAsync(WebViewUrl);
        };
        stackPanel.AddChild(addCustomFrameButton);

        var customizeActiveChartButton = new Button { Text = "customize Active Chart", Style = buttonStyle };
        customizeActiveChartButton.Click += args =>
        {
            var activeFrame = ChartManager.ActiveFrame;
            if (activeFrame is ChartFrame chartFrame)
            {
                var chart = chartFrame.Chart;
                chart.ColorSettings.BackgroundColor = Color.DarkBlue;
                chart.DisplaySettings.TickVolume = false;
                chart.ZoomLevel = 10;
            }
        };
        stackPanel.AddChild(customizeActiveChartButton);

        var border = new Border();
        border.Padding = 5;
        border.BackgroundColor = "#1A1A1A";
        border.CornerRadius = 3;
        border.BorderThickness = 1;
        border.BorderColor = "525252";
        border.Child = stackPanel;
        border.Width = 170;
        border.Height = 190;
        return new CommandResult(border);
    }
}

The Plugin attribute with optional properties like AccessRights appears above the plugin class (SimplePlugin) declaration.

This plugin uses the OnStart() method, which is called when the plugin is loaded. This icon adds a custom icon to the chart toolbar using Commands.Add.

When clicked, the icon triggers a user-defined handler (OnIconClicked) that opens a panel with several UI controls.

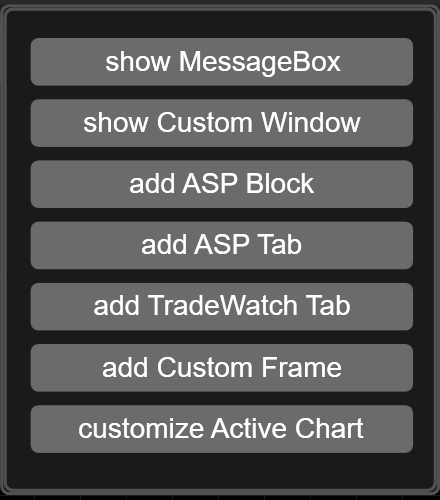

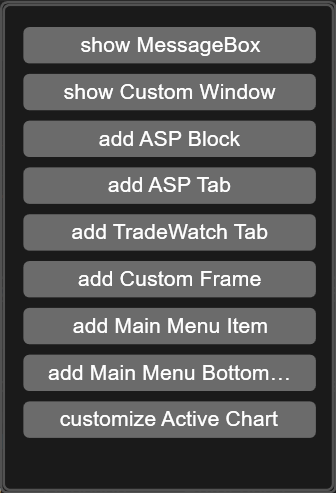

These are main actions available in the UI:

  • Show message box - opens a standard message box with Yes/No buttons.
  • Show custom window - opens a new floating window containing a WebView that loads an external page.
  • Add ASP block - adds a new expandable block to Active Symbol Panel (ASP), embedding a WebView.
  • Add ASP tab - inserts a new tab in ASP, loading a WebView into it.
  • Add Trade Watch tab - adds a new tab in Trade Watch and loads a WebView into it.
  • Add custom frame - creates a custom chart frame overlaid on the chart and populates it with a WebView.
  • Customise active chart - changes the appearance and settings of the currently active chart (e.g., background colour, zoom level, tick volume visibility).

Each button in the panel is styled using the Style object and added to a vertical StackPanel. The panel itself is wrapped inside a styled Border, which is returned as the result of the toolbar command.

By studying C# basics or Python basics and reviewing plugin code examples, you can deepen your understanding of algorithm development in cTrader.

Note

References includes all classes, events, methods, variables, etc. for building plugins in cTrader, while full algorithm examples and templates are available in a GitHub repository.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
class SimplePlugin():
    def on_start(self):
        api.Commands.Add(CommandType.ChartContainerToolbar, Func[CommandArgs, CommandResult](self.command_handler), COMMANDSVGICON);

    def command_handler(self, args):
        buttonStyle = Style()
        buttonStyle.Set(ControlProperty.Margin, Thickness(0, 5, 0, 0))
        buttonStyle.Set(ControlProperty.Width, 150)

        stackPanel = StackPanel()

        showMessageBoxButton = Button()
        showMessageBoxButton.Text = "show MessageBox"
        showMessageBoxButton.Style = buttonStyle
        showMessageBoxButton.Click += lambda _ : MessageBox.Show("Some message", "Caption", MessageBoxButton.YesNo)

        stackPanel.AddChild(showMessageBoxButton)

        showCustomWindowButton = Button()
        showCustomWindowButton.Text = "show Custom Window"
        showCustomWindowButton.Style = buttonStyle
        showCustomWindowButton.Click += self.on_show_window_button_clicked

        stackPanel.AddChild(showCustomWindowButton)

        self.blockCounter = 1

        addAspBlockButton = Button()
        addAspBlockButton.Text = "add ASP Block"
        addAspBlockButton.Style = buttonStyle
        addAspBlockButton.Click += self.on_add_asp_block_button_clicked

        stackPanel.AddChild(addAspBlockButton)

        self.aspTabCounter = 1

        addAspTabButton = Button()
        addAspTabButton.Text = "add ASP Tab"
        addAspTabButton.Style = buttonStyle
        addAspTabButton.Click += self.on_add_asp_tab_button_clicked

        stackPanel.AddChild(addAspTabButton)

        self.tradewatchTabCounter = 1

        addTradeWatchTabButton = Button()
        addTradeWatchTabButton.Text = "add TradeWatch Tab"
        addTradeWatchTabButton.Style = buttonStyle
        addTradeWatchTabButton.Click += self.on_add_trade_watch_tab_button

        stackPanel.AddChild(addTradeWatchTabButton)

        self.customFrameCounter = 1;

        addCustomFrameButton = Button()
        addCustomFrameButton.Text = "add Custom Frame"
        addCustomFrameButton.Style = buttonStyle
        addCustomFrameButton.Click += self.on_add_custom_frame_button_clicked

        stackPanel.AddChild(addCustomFrameButton);

        self.mainMenuItemCounter = 1;

        addMainMenuItemButton = Button()
        addMainMenuItemButton.Text = "add Main Menu Item"
        addMainMenuItemButton.Style = buttonStyle
        addMainMenuItemButton.Click += self.on_add_main_menu_item_button_clicked

        stackPanel.AddChild(addMainMenuItemButton);

        self.mainMenuBottomItemCounter = 1;

        addMainMenuBottomItemButton = Button()
        addMainMenuBottomItemButton.Text = "add Main Menu Bottom Item"
        addMainMenuBottomItemButton.Style = buttonStyle
        addMainMenuBottomItemButton.Click += self.on_add_main_menu_bottom_item_button_clicked

        stackPanel.AddChild(addMainMenuBottomItemButton);

        customizeActiveChartButton = Button()
        customizeActiveChartButton.Text = "customize Active Chart"
        customizeActiveChartButton.Style = buttonStyle
        customizeActiveChartButton.Click += self.on_customize_active_chart_button_clicked

        stackPanel.AddChild(customizeActiveChartButton);

        border = Border()
        border.Padding = Thickness(5)
        border.BackgroundColor = Color.FromHex("#1A1A1A")
        border.CornerRadius = CornerRadius(3)
        border.BorderThickness = Thickness(1)
        border.BorderColor = Color.FromHex("#525252")
        border.Child = stackPanel
        border.Width = 170
        border.Height = 250

        return CommandResult(border);

    def on_show_window_button_clicked(self, args):
        window = Window()
        webView = WebView()
        window.Child = webView

        window.Show()
        webView.NavigateAsync(WEBVIEWURL)

    def on_add_asp_block_button_clicked(self, args):
        newBlock = api.Asp.SymbolTab.AddBlock(f"One more block {self.blockCounter}")
        newBlock.IsExpanded = True
        newBlock.Height = 600
        self.blockCounter += 1
        webView = WebView()
        newBlock.Child = webView
        webView.NavigateAsync(WEBVIEWURL)

    def on_add_asp_tab_button_clicked(self, args):
        tab = api.Asp.AddTab(f"ASP tab {self.aspTabCounter}")
        tab.Index = self.aspTabCounter
        self.aspTabCounter += 1
        webView = WebView()
        tab.Child = webView
        webView.NavigateAsync(WEBVIEWURL)

    def on_add_trade_watch_tab_button(self, args):
        tab = api.TradeWatch.AddTab(f"Tab {self.tradewatchTabCounter}")
        tab.Index = self.tradewatchTabCounter
        self.tradewatchTabCounter += 1
        tab.IsSelected = True
        webView = WebView()
        tab.Child = webView
        webView.NavigateAsync(WEBVIEWURL)

    def on_add_custom_frame_button_clicked(self, args):
        frame = api.ChartManager.AddCustomFrame(f"Custom Frame {self.customFrameCounter}")
        self.customFrameCounter += 1
        webView = WebView()
        frame.Child = webView
        webView.NavigateAsync(WEBVIEWURL)

    def on_customize_active_chart_button_clicked(self, args):
        activeFrame = api.ChartManager.ActiveFrame

        if activeFrame is None or isinstance(activeFrame.__implementation__, ChartFrame) == False:
            return

        chartFrame = ChartFrame(activeFrame)
        chart = chartFrame.Chart
        chart.ColorSettings.BackgroundColor = Color.DarkBlue
        chart.DisplaySettings.TickVolume = False
        chart.ZoomLevel = 10

    def on_add_main_menu_item_button_clicked(self, args):
        item = api.MainMenu.AddItem(f"Item {self.mainMenuItemCounter}", MAINMENUITEMSVGICON)
        self.mainMenuItemCounter += 1
        webView = WebView()
        webView.Loaded += lambda _ : webView.NavigateAsync("https://help.ctrader.com/")
        item.Child = webView

    def main_menu_bottom_item_handler(self):
        api.Print("Main menu bottom item triggered!")

    def on_add_main_menu_bottom_item_button_clicked(self, args):
        item = api.MainMenu.AddBottomItem(f"Item {self.mainMenuBottomItemCounter}", MAINMENUBOTTOMITEMSVGICON)
        self.mainMenuBottomItemCounter += 1
        item.Handler = Action(self.main_menu_bottom_item_handler)



WEBVIEWURL = "https://ctrader.com";

COMMANDSVGICON = SvgIcon("<svg class='w-6 h-6 text-gray-800 dark:text-white' aria-hidden='true' xmlns='http://www.w3.org/2000/svg' width='15' height='15' fill='none' viewBox='0 0 24 24'><path stroke='#BFBFBF' stroke-linecap='round' stroke-linejoin='round' stroke-width='2' d='M11 6.5h2M11 18h2m-7-5v-2m12 2v-2M5 8h2a1 1 0 0 0 1-1V5a1 1 0 0 0-1-1H5a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Zm0 12h2a1 1 0 0 0 1-1v-2a1 1 0 0 0-1-1H5a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Zm12 0h2a1 1 0 0 0 1-1v-2a1 1 0 0 0-1-1h-2a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Zm0-12h2a1 1 0 0 0 1-1V5a1 1 0 0 0-1-1h-2a1 1 0 0 0-1 1v2a1 1 0 0 0 1 1Z'/></svg>")
MAINMENUITEMSVGICON = SvgIcon("<svg width=\"800px\" height=\"800px\" viewBox=\"0 0 1024 1024\" class=\"icon\"  version=\"1.1\" xmlns=\"http://www.w3.org/2000/svg\"><path d=\"M819.9 747.6H204.1c-21.8 0-39.5-17.7-39.5-39.5V278.4c0-21.8 17.7-39.5 39.5-39.5h615.7c21.8 0 39.5 17.7 39.5 39.5v429.7c0.1 21.9-17.6 39.5-39.4 39.5z\" fill=\"#FFD632\" /><path d=\"M819.9 753.1H204.1c-24.8 0-45-20.2-45-45V278.4c0-24.8 20.2-45 45-45h615.7c24.8 0 45 20.2 45 45v429.7c0.1 24.9-20.1 45-44.9 45zM204.1 244.4c-18.7 0-34 15.3-34 34v429.7c0 18.7 15.3 34 34 34h615.7c18.7 0 34-15.3 34-34V278.4c0-18.7-15.3-34-34-34H204.1z\" fill=\"#333336\" /><path d=\"M296.5 766.6h58.3v39.9c0 10.1-8.2 18.4-18.4 18.4h-21.6c-10.1 0-18.4-8.2-18.4-18.4v-39.9z\" fill=\"#FFC86B\" /><path d=\"M336.4 830.4h-21.6c-13.2 0-23.9-10.7-23.9-23.9v-45.4h69.3v45.4c0.1 13.2-10.6 23.9-23.8 23.9zM302 772.1v34.4c0 7.1 5.8 12.9 12.9 12.9h21.6c7.1 0 12.9-5.8 12.9-12.9v-34.4H302z\" fill=\"#333336\" /><path d=\"M441 315.3v-62.1c0-29.4-23.9-53.3-53.3-53.3H263.6c-29.4 0-53.3 23.9-53.3 53.3v62.1c0 24.7 7.8 47.6 21 66.4 6.5 9.2 9.9 20.3 9.9 31.5v160.2c0 11.3-3.4 22.3-9.9 31.5-13.2 18.8-21 41.7-21 66.4v63.1c0 28.9 23.4 52.3 52.3 52.3h126.2c28.9 0 52.3-23.4 52.3-52.3v-63.1c0-24.7-7.7-47.5-20.9-66.2-6.5-9.3-10-20.4-10-31.8v-160c0-11.4 3.4-22.5 10-31.8 13-18.8 20.8-41.6 20.8-66.2z\" fill=\"#68A240\" /><path d=\"M388.7 792.1H262.6c-31.8 0-57.8-25.9-57.8-57.8v-63.1c0-25.1 7.6-49.1 22-69.5 5.8-8.2 8.9-18 8.9-28.4V413.2c0-10.3-3.1-20.1-8.9-28.4-14.4-20.4-22-44.5-22-69.5v-62.1c0-32.4 26.4-58.8 58.8-58.8h124.1c32.4 0 58.8 26.4 58.8 58.8v62.1c0 25-7.6 49-21.9 69.4-5.9 8.3-9 18.2-9 28.7v159.9c0 10.4 3.1 20.3 9 28.7 14.3 20.4 21.9 44.4 21.9 69.4v63.1c0 31.7-25.9 57.6-57.8 57.6zM263.6 205.4c-26.3 0-47.8 21.4-47.8 47.8v62.1c0 22.8 6.9 44.6 20 63.2 7.1 10.1 10.9 22.1 10.9 34.7v160.2c0 12.6-3.8 24.6-10.9 34.7-13.1 18.6-20 40.4-20 63.2v63.1c0 25.8 21 46.8 46.8 46.8h126.2c25.8 0 46.8-21 46.8-46.8v-63.1c0-22.7-6.9-44.5-19.9-63.1-7.2-10.2-11-22.3-11-35V413.3c0-12.7 3.8-24.8 11-35 13-18.5 19.9-40.3 19.9-63.1v-62.1c0-26.3-21.4-47.8-47.8-47.8H263.6z\" fill=\"#333336\" /><path d=\"M780.6 437.5H495.4c-8 0-14.5-6.5-14.5-14.5V317.6c0-8 6.5-14.5 14.5-14.5h285.2c8 0 14.5 6.5 14.5 14.5V423c0 8-6.5 14.5-14.5 14.5z\" fill=\"#D8A128\" /><path d=\"M780.6 443H495.4c-11 0-20-9-20-20V317.6c0-11 9-20 20-20h285.2c11 0 20 9 20 20V423c0 11-8.9 20-20 20zM495.4 308.6c-5 0-9 4-9 9V423c0 5 4 9 9 9h285.2c5 0 9-4 9-9V317.6c0-5-4-9-9-9H495.4zM476.9 889.6c-2.1 0-4-1.2-5-3.2-0.8-1.6-19.7-39-79-19.6-23.1 7.5-41.3 6.6-54.3-2.8-18.3-13.2-18.5-38-18.5-39.1 0-3 2.5-5.5 5.5-5.5s5.5 2.5 5.5 5.5c0 0.3 0.3 20.4 14 30.2 10 7.2 24.9 7.6 44.4 1.2 19.6-6.4 48.1-11 71.8 3.8 14.5 9 20.3 21 20.5 21.5 1.3 2.7 0.1 6-2.6 7.3-0.8 0.5-1.6 0.7-2.3 0.7z m-145.7-64.7z\" fill=\"#333336\" /><path d=\"M550 570.9h-57.3c-4.7 0-8.6-3.8-8.6-8.6V505c0-4.7 3.8-8.6 8.6-8.6H550c4.7 0 8.6 3.8 8.6 8.6v57.3c-0.1 4.7-3.9 8.6-8.6 8.6z\" fill=\"#D5D9CF\" /><path d=\"M550 576.4h-57.3c-7.8 0-14.1-6.3-14.1-14.1V505c0-7.8 6.3-14.1 14.1-14.1H550c7.8 0 14.1 6.3 14.1 14.1v57.3c-0.1 7.8-6.4 14.1-14.1 14.1z m-57.3-74.5c-1.7 0-3.1 1.4-3.1 3.1v57.3c0 1.7 1.4 3.1 3.1 3.1H550c1.7 0 3.1-1.4 3.1-3.1V505c0-1.7-1.4-3.1-3.1-3.1h-57.3z\" fill=\"#333336\" /><path d=\"M667.3 570.9H610c-4.7 0-8.6-3.8-8.6-8.6V505c0-4.7 3.8-8.6 8.6-8.6h57.3c4.7 0 8.6 3.8 8.6 8.6v57.3c0 4.7-3.8 8.6-8.6 8.6z\" fill=\"#D5D9CF\" /><path d=\"M667.3 576.4H610c-7.8 0-14.1-6.3-14.1-14.1V505c0-7.8 6.3-14.1 14.1-14.1h57.3c7.8 0 14.1 6.3 14.1 14.1v57.3c0 7.8-6.3 14.1-14.1 14.1zM610 501.9c-1.7 0-3.1 1.4-3.1 3.1v57.3c0 1.7 1.4 3.1 3.1 3.1h57.3c1.7 0 3.1-1.4 3.1-3.1V505c0-1.7-1.4-3.1-3.1-3.1H610z\" fill=\"#333336\" /><path d=\"M784.7 570.9h-57.3c-4.7 0-8.6-3.8-8.6-8.6V505c0-4.7 3.8-8.6 8.6-8.6h57.3c4.7 0 8.6 3.8 8.6 8.6v57.3c0 4.7-3.9 8.6-8.6 8.6z\" fill=\"#D5D9CF\" /><path d=\"M784.7 576.4h-57.3c-7.8 0-14.1-6.3-14.1-14.1V505c0-7.8 6.3-14.1 14.1-14.1h57.3c7.8 0 14.1 6.3 14.1 14.1v57.3c0 7.8-6.3 14.1-14.1 14.1z m-57.3-74.5c-1.7 0-3.1 1.4-3.1 3.1v57.3c0 1.7 1.4 3.1 3.1 3.1h57.3c1.7 0 3.1-1.4 3.1-3.1V505c0-1.7-1.4-3.1-3.1-3.1h-57.3z\" fill=\"#333336\" /><path d=\"M550 691.6h-57.3c-4.7 0-8.6-3.8-8.6-8.6v-57.3c0-4.7 3.8-8.6 8.6-8.6H550c4.7 0 8.6 3.8 8.6 8.6V683c-0.1 4.8-3.9 8.6-8.6 8.6z\" fill=\"#D5D9CF\" /><path d=\"M550 697.1h-57.3c-7.8 0-14.1-6.3-14.1-14.1v-57.3c0-7.8 6.3-14.1 14.1-14.1H550c7.8 0 14.1 6.3 14.1 14.1V683c-0.1 7.8-6.4 14.1-14.1 14.1z m-57.3-74.4c-1.7 0-3.1 1.4-3.1 3.1v57.3c0 1.7 1.4 3.1 3.1 3.1H550c1.7 0 3.1-1.4 3.1-3.1v-57.3c0-1.7-1.4-3.1-3.1-3.1h-57.3z\" fill=\"#333336\" /><path d=\"M667.3 691.6H610c-4.7 0-8.6-3.8-8.6-8.6v-57.3c0-4.7 3.8-8.6 8.6-8.6h57.3c4.7 0 8.6 3.8 8.6 8.6V683c0 4.8-3.8 8.6-8.6 8.6z\" fill=\"#D5D9CF\" /><path d=\"M667.3 697.1H610c-7.8 0-14.1-6.3-14.1-14.1v-57.3c0-7.8 6.3-14.1 14.1-14.1h57.3c7.8 0 14.1 6.3 14.1 14.1V683c0 7.8-6.3 14.1-14.1 14.1zM610 622.7c-1.7 0-3.1 1.4-3.1 3.1v57.3c0 1.7 1.4 3.1 3.1 3.1h57.3c1.7 0 3.1-1.4 3.1-3.1v-57.3c0-1.7-1.4-3.1-3.1-3.1H610z\" fill=\"#333336\" /><path d=\"M784.7 691.6h-57.3c-4.7 0-8.6-3.8-8.6-8.6v-57.3c0-4.7 3.8-8.6 8.6-8.6h57.3c4.7 0 8.6 3.8 8.6 8.6V683c0 4.8-3.9 8.6-8.6 8.6z\" fill=\"#68A240\" /><path d=\"M784.7 697.1h-57.3c-7.8 0-14.1-6.3-14.1-14.1v-57.3c0-7.8 6.3-14.1 14.1-14.1h57.3c7.8 0 14.1 6.3 14.1 14.1V683c0 7.8-6.3 14.1-14.1 14.1z m-57.3-74.4c-1.7 0-3.1 1.4-3.1 3.1v57.3c0 1.7 1.4 3.1 3.1 3.1h57.3c1.7 0 3.1-1.4 3.1-3.1v-57.3c0-1.7-1.4-3.1-3.1-3.1h-57.3z\" fill=\"#333336\" /></svg>")
MAINMENUBOTTOMITEMSVGICON = SvgIcon("<svg width=\"800px\" height=\"800px\" viewBox=\"0 0 1024 1024\" class=\"icon\"  version=\"1.1\" xmlns=\"http://www.w3.org/2000/svg\"><path d=\"M819 234l-48-13 48-13 13-48 13 48 48 13-48 13-13 48-13-48zM867 287l-19-5 19-4 4-19 4 19 19 4-19 5-4 19-4-19z\" fill=\"#FDCD60\" /><path d=\"M130 472l-21-5 21-5 5-21 5 21 21 5-21 5-5 20-5-20z\" fill=\"#FDCD60\" /><path d=\"M208 246m-9 0a9 9 0 1 0 18 0 9 9 0 1 0-18 0Z\" fill=\"#5546CB\" /><path d=\"M824 804a25 25 0 1 1 25-25 25 25 0 0 1-25 25z m0-36a10 10 0 1 0 10 10 10 10 0 0 0-10-9z\" fill=\"#5546CB\" /><path d=\"M166 728h78v77.34h-78z\" fill=\"#FDCD60\" /><path d=\"M452 509v43h128v-43a19 19 0 0 1 14-18H438a19 19 0 0 1 14 18z\" fill=\"#F97744\" /><path d=\"M661 489h1a19 19 0 0 1 19 19v43h32v114a74 74 0 0 1-74 74H387a73 73 0 0 1-73-73V552h38v-43a19 19 0 0 1 19-19h1a116 116 0 0 1-83-50v337a31 31 0 0 0 31 31h386a31 31 0 0 0 31-31V440a116 116 0 0 1-76 49z\" fill=\"#F97744\" /><path d=\"M334 666a53 53 0 0 0 53 53h251a54 54 0 0 0 54-54v-93h-32a30 30 0 0 1-30 25 30 30 0 0 1-30-25H432a30 30 0 0 1-30 25 30 30 0 0 1-30-25h-38z\" fill=\"#FFFFFF\" /><path d=\"M580 553H452a19 19 0 0 1-19 19h166a19 19 0 0 1-19-19z\" fill=\"#5546CB\" /><path d=\"M662 572h30v93a54 54 0 0 1-54 54H387a53 53 0 0 1-53-53v-94h37a19 19 0 0 1-19-19h-38v113a73 73 0 0 0 73 73h251a74 74 0 0 0 74-74V552h-32a19 19 0 0 1-18 20z\" fill=\"#5546CB\" /><path d=\"M289 375a96 96 0 0 0 83 95v-70a30 30 0 0 1 30-30 30 30 0 0 1 30 30v71h168v-71a30 30 0 0 1 30-30 30 30 0 0 1 30 30v69a96 96 0 0 0 76-94V266a31 31 0 0 0-31-31H320a31 31 0 0 0-31 31v109z\" fill=\"#FDCD60\" /><path d=\"M402 597a30 30 0 0 0 30-25h-59a30 30 0 0 0 29 25zM372 510h60v41.48h-60zM630 597a30 30 0 0 0 30-25h-59a30 30 0 0 0 29 25zM600 510h60v41.48h-60z\" fill=\"#5546CB\" /><path d=\"M438 491h-67a19 19 0 0 0-19 19v43a19 19 0 0 0 19 19h63a19 19 0 0 0 19-19v-44a19 19 0 0 0-15-18z m-6 61h-60v-42h60zM662 490h-67a19 19 0 0 0-14 18v43a19 19 0 0 0 19 19h63a19 19 0 0 0 19-19v-42a19 19 0 0 0-20-19z m-1 61h-61v-41h60z\" fill=\"#FDCD60\" /><path d=\"M786 524h-29v148h29a24 24 0 0 0 24-24V548a24 24 0 0 0-24-24z\" fill=\"#AFBCF3\" /><path d=\"M786 504h-29V266a51 51 0 0 0-51-51h-78a116 116 0 0 0-230 0h-78a51 51 0 0 0-51 51v240l-8-2h-30a44 44 0 0 0-44 44v100a44 44 0 0 0 44 44h30l8-2v87a51 51 0 0 0 51 51h386a51 51 0 0 0 51-51v-85h29a44 44 0 0 0 44-44V548a44 44 0 0 0-44-44zM260 672h-29a24 24 0 0 1-24-24V548a24 24 0 0 1 24-24h29z m253-536a96 96 0 0 1 95 79H418a96 96 0 0 1 95-79zM289 266a31 31 0 0 1 31-31h386a31 31 0 0 1 31 31v109a96 96 0 0 1-76 94v-69a30 30 0 0 0-30-30 30 30 0 0 0-30 30v71H432v-71a30 30 0 0 0-30-30 30 30 0 0 0-30 30v70a96 96 0 0 1-83-95V266z m417 542H320a31 31 0 0 1-31-31V440a116 116 0 0 0 83 50h289a116 116 0 0 0 76-49v336a31 31 0 0 1-31 31z m104-160a24 24 0 0 1-24 24h-29V524h29a24 24 0 0 1 24 24z\" fill=\"#5546CB\" /><path d=\"M208 548v100a24 24 0 0 0 24 24h29V524h-30a24 24 0 0 0-23 24z\" fill=\"#AFBCF3\" /></svg>")

The SimplePlugin class represents a plugin written in Python that uses Algo API to extend the platform interface with custom controls and interactions.

The on_start() method is the entry point, called when the plugin is initialised. It adds a custom SVG icon to the chart toolbar.

When clicked, the icon triggers the command_handler method, which returns a styled panel (CommandResult) containing multiple interactive buttons.

Each button performs a distinct platform interaction:

  • Show message box - opens a standard message box with yes and no buttons.
  • Show custom window - opens a new floating window containing a WebView that loads an external page.
  • Add ASP block - adds a new expandable block to the Active Symbol Panel (ASP), embedding a WebView.
  • Add ASP tab - inserts a new tab in the ASP area, loading a WebView into it.
  • Add Trade Watch tab - adds a new tab into Trade Watch and selects it by default.
  • Add custom frame - creates a floating chart frame and inserts a WebView inside it.
  • Add main menu item - adds a new item to the main top-level menu with a custom icon, opening a WebView pointing to the cTrader Help site.
  • Add main menu bottom item - adds an item to the bottom of the main menu, which prints a message when clicked.
  • Customise active chart - changes the currently active chart by changing the background colour, hiding tick volume, and adjusting the zoom level.

These buttons are added to a vertically stacked layout (StackPanel) and wrapped in a styled Border, which defines its dimensions, padding, background, border thickness and colour. The panel is then returned as a CommandResult, which displays it in the chart UI.

By studying Python basics and reviewing plugin code examples, you can deepen your understanding of algorithm development in cTrader.

Note

References includes all classes, events, methods, variables, etc. for building plugins in cTrader, while full algorithm examples and templates are available in a GitHub repository.

Apply your new knowledge to edit the plugin code and adapt it to your needs.

Save and build

Save your code by clicking the Save button at the top of the code editor or use the Ctrl+S shortcut.

Before you can use your plugin, you need to validate its code by building the plugin project. Click the Build button at the top of the code editor or press Ctrl+B.

Save your code by clicking the Save icon at the top of the code editor or use the Cmd+S shortcut.

Before you can use your indicator, you need to validate its code by building the indicator project. Click the Build icon at the top of the code editor or press Cmd+B.

When the build succeeds, you see a confirmation message in Build result. If the build fails, a summary of all errors encountered appears instead.

If there are changes to the code since the last build, an asterisk appears next to the Build icon. In this case, you should build the plugin again so that the changes take effect.

On a successful build, the plugin will immediately add custom elements to the area of the cTrader UI specified in its code.

Use special methods (optional)

Similarly to cBots, plugins can use the OnStart() method, OnStop() method and Timer object:

  • The OnStart() handler is called once when a new plugin is initialised.
  • The OnStop() handler is called when the plugin instance is disabled, uninstalled or terminated due to cTrader closing.
  • The Timer object is used to run code at regular intervals. After initialising and starting the built-in timer of the Timer class, the specified method is executed each time the defined interval elapses.

Exception handling

Like other algos, plugins can access the OnException method, which is often used to control how an algorithm handles errors.

To demonstrate the use of the methods mentioned above, consider a simple plugin that shows the total number of currently open profitable positions. Attached to the ASP, this plugin updates its display every second using the built-in timer.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using cAlgo.API;
using cAlgo.API.Collections;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;

namespace cAlgo.Plugins
{
    [Plugin(AccessRights = AccessRights.None)]
    public class ProfitablePositions : Plugin
    {
        private TextBlock _textBlock = new TextBlock
        {
            Text = "Starting...",
            FontSize = 30,
            FontWeight = FontWeight.ExtraBold,
            TextAlignment = TextAlignment.Center,
            Padding = new Thickness(5, 5, 5, 5),
        };

        protected override void OnStart()
        {
            var aspBlock = Asp.SymbolTab.AddBlock("Profitable Positions");
            aspBlock.IsExpanded = true;
            aspBlock.Height = 50;

            aspBlock.Child = _textBlock;
            _textBlock.Text = GetProfitablePositions();

            Timer.Start(TimeSpan.FromSeconds(1));

        }

        protected override void OnTimer()
        {
            _textBlock.Text = GetProfitablePositionsCount().toString();
        }


        protected int GetProfitablePositionsCount()
        {
            int count = 0;
            foreach (var position in Positions)
            {
                if (position.GrossProfit > 0)
                {
                    count++;
                }
            }
            return count;
        }
    }
}

Image title
