Backtesting custom data sources

The backtesting custom data source API provides types that allow developers to feed custom price data into the backtesting, optimisation and Market Replay engines in cTrader. These API functionalities enable new and powerful workflows using offline, third-party, synthetic or experimental data formats.

Core interfaces and types include:

  • BacktestingDataSources.Add(name, options) to register a new custom source.
  • BacktestingDataSourceOptions to configure the supported data type, data time range and fetch logic.
  • BacktestingDataRequest is issued by the engine when data is needed during a test.
  • BacktestingTickData and BacktestingBarsData encapsulate the data returned from the plugin.

The backtesting engine interacts with the provided data through these components:

  • Data types – choose between tick (bid/ask), m1 open prices, full OHLCV bars, etc.
  • Data providers – implement callbacks to supply data on demand.
  • Time range management – define which periods are supported.
  • Custom periods – combine with TimeFrameManager.Custom to simulate new bar types or resolutions.
  • Custom symbols – run simulations on synthetic instruments.

Tip

Use the API to backtest your strategies on third-party feeds, such as broker tick data, and apply offline datasets in a controlled environment. Replay, optimise and stress-test strategies on data that truly reflects live trading conditions, and do it all within the familiar cTrader UI.

The backtesting custom data source API enables the following:

Feature or operation Examples
Alternative data integration Backtest using institutional tick feeds.
Run Market Replay on broker-specific data.
Import AlphaVantage or Nasdaq Data Link (Quandl) bars.
Event-based backtesting Simulate impact of news reports, such as CPI or NFP.
Inject volatility bursts during known periods.
Alternative bar testing Backtest on Renko, Heikin Ashi or custom bar logic.
Timeframe experimentation Try strategies on uncommon timeframes, such as m25, m40, h10, etc.
Strategy robustness testing Inject random noise into prices.
Run Monte Carlo simulations.
Equity curve or risk overlays Backtest using historical strategy balance curves.

Basic workflow

Plugin example

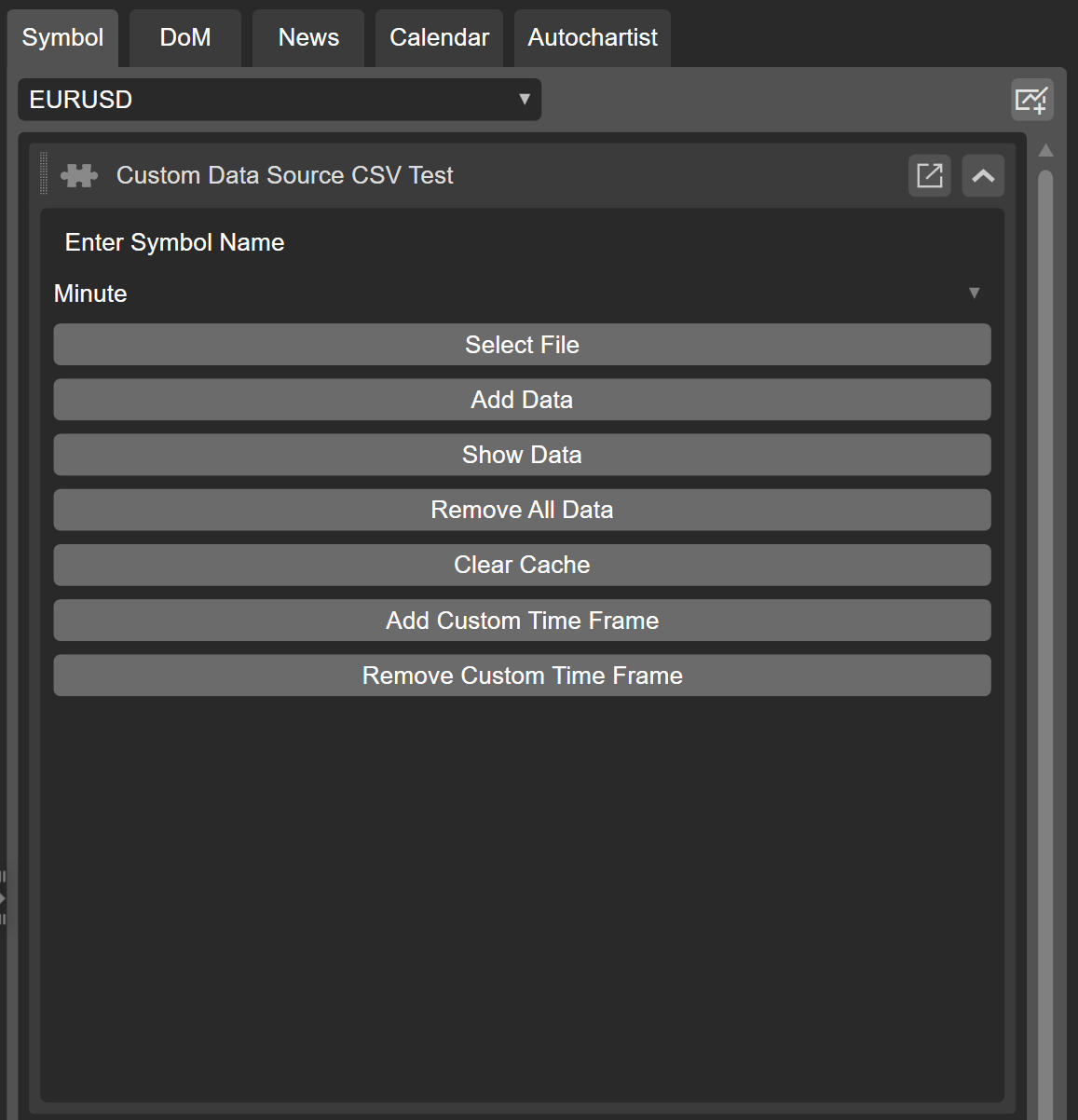

When enabled, this plugin displays a component with buttons in Active Symbol Panel that lets you add and manage custom data sources, including those for custom periods.

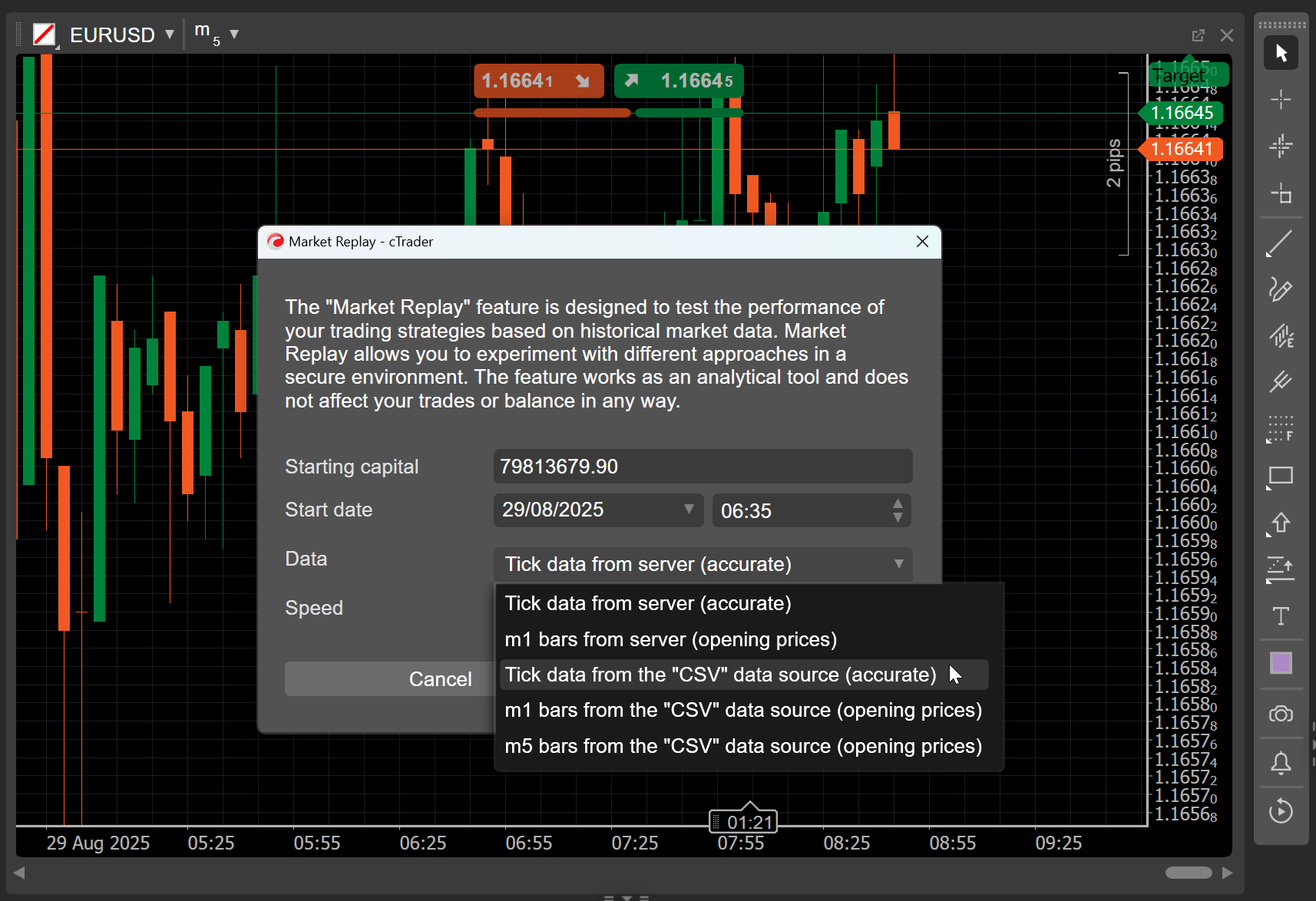

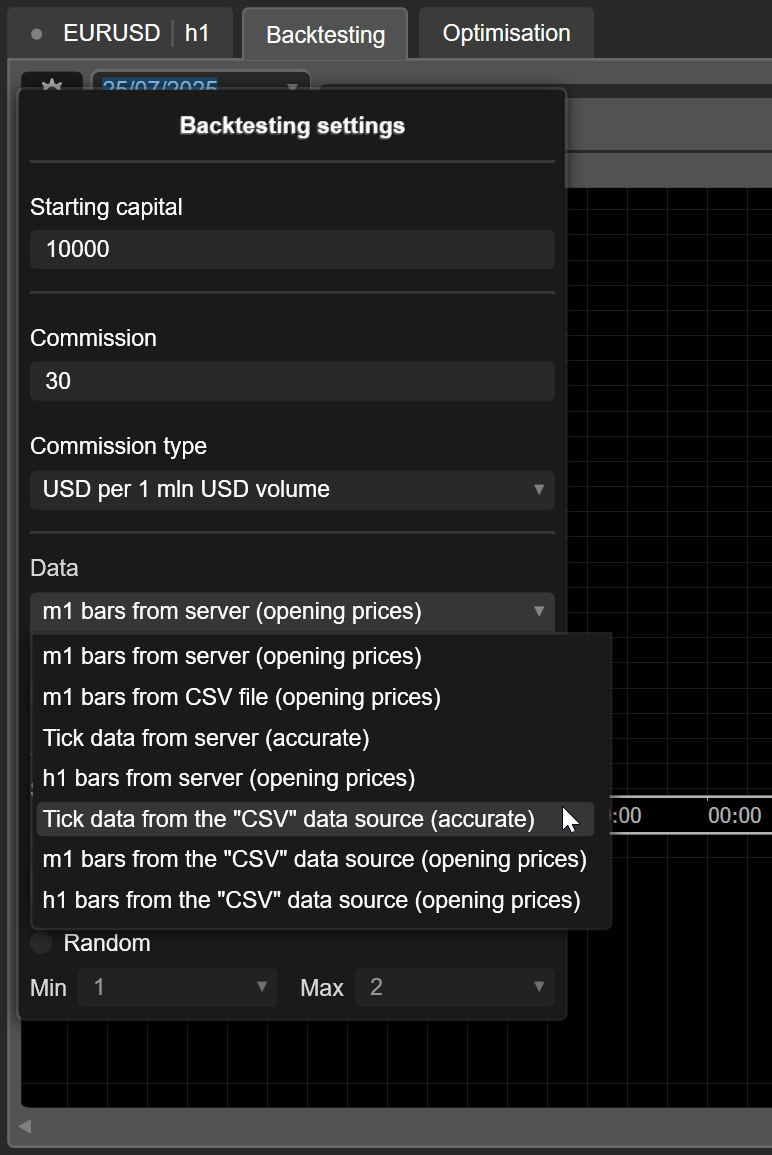

Any added custom data becomes available as a data option in Market Replay and Backtesting window, while any added custom periods appears in the regular Period UI.

Plugin code
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Net;
using System.Reflection;
using cAlgo.API;
using cAlgo.API.Collections;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;
using System.Linq;

namespace cAlgo.Plugins
{
    [Plugin(AccessRights = AccessRights.FullAccess)]
    public class CustomDataSourceCSVTest : Plugin
    {
        private BacktestingDataSource _dataSource;
        private TextBox _symbolNameTextBox;
        private ComboBox _timeFrameCombobox;
        private string _selectedFilePath;

        private readonly Dictionary<DataId, Data> _addedData = new();
        private readonly Dictionary<DataId, Dictionary<DateOnly, List<BacktestingTick>>> _cachedTickData = new();
        private readonly Dictionary<DataId, List<BacktestingBar>> _cachedBarData = new();

        private StackPanel _panel;
        private Button _selectFileButton;

        private CustomTimeFrame _customTimeFrame;

        protected override void OnStart()
        {
            // System.Diagnostics.Debugger.Launch();

            LoadFromLocalStorage();

            var options = new BacktestingDataSourceOptions(BacktestingDataSourceDataType.Tick | BacktestingDataSourceDataType.M1OpenPrices | BacktestingDataSourceDataType.OpenPrices, OnMinMaxTimeRequested, OnDataRequested);

            _dataSource = Backtesting.DataSources.Add("CSV", options);

            var aspBlock = Asp.SymbolTab.AddBlock("Custom Data Source CSV Test");

            aspBlock.Child = GetAddDataPanel();
            aspBlock.Height = 400;
        }

        private Panel GetAddDataPanel()
        {
            _panel = new StackPanel() {Orientation = Orientation.Vertical, Margin = 3};

            _symbolNameTextBox = new TextBox() {Text = "Enter Symbol Name", Margin = 3};

            _panel.AddChild(_symbolNameTextBox);

            _timeFrameCombobox = new ComboBox() {Margin = 3, Padding = 2};

            foreach (var timeFrame in GetTimeFrames())
            {
                _timeFrameCombobox.AddItem(timeFrame.Name);
            }

            _timeFrameCombobox.SelectedItem = TimeFrame.Minute.Name;

            _panel.AddChild(_timeFrameCombobox);

            _selectFileButton = new Button() {Text = "Select File", Margin = 3};

            _selectFileButton.Click += OnSelectFileButtonClicked;

            _panel.AddChild(_selectFileButton);

            var addButton = new Button() {Text = "Add Data", Margin = 3};

            addButton.Click += OnAddClick;

            _panel.AddChild(addButton);

            var showDataButton = new Button() {Text = "Show Data", Margin = 3};

            showDataButton.Click += OnShowDataClick;

            _panel.AddChild(showDataButton);

            var removeAllDataButton = new Button() {Text = "Remove All Data", Margin = 3};

            removeAllDataButton.Click += OnRemoveAllDataClick;

            _panel.AddChild(removeAllDataButton);

            var clearCacheButton = new Button() {Text = "Clear Cache", Margin = 3};

            clearCacheButton.Click += OnClearCacheClick;

            _panel.AddChild(clearCacheButton);

            var addCustomTimeFrameButton = new Button() {Text = "Add Custom Time Frame", Margin = 3};

            addCustomTimeFrameButton.Click += OnAddCustomTimeFrameClick;

            _panel.AddChild(addCustomTimeFrameButton);

            var removeCustomTimeFrameButton = new Button() {Text = "Remove Custom Time Frame", Margin = 3};

            removeCustomTimeFrameButton.Click += OnRemoveCustomTimeFrameClick;

            _panel.AddChild(removeCustomTimeFrameButton);

            return _panel;
        }

        private void OnRemoveCustomTimeFrameClick(ButtonClickEventArgs obj)
        {
            if (TimeFrameManager.Custom.Remove(_customTimeFrame))
            {
                Print($"Custom time frame removed.");
                return;
            }

            Print($"Removing custom time frame failed.");
        }

        private void OnAddCustomTimeFrameClick(ButtonClickEventArgs obj)
        {
            _customTimeFrame = TimeFrameManager.Custom.Add("Custom Data Source Test (H1)");

            _customTimeFrame.BarsNeeded = args =>
            {
                Print($"Custom time frame bars needed for symbol '{args.CustomBars.Symbol.Name}'.");

                var bars = MarketData.GetBars(TimeFrame.Hour, args.CustomBars.Symbol.Name);

                Print($"Appending custom time frame bars '{bars.Count}' for symbol '{args.CustomBars.Symbol.Name}'.");

                args.CustomBars.AppendBars(bars.Select(b => new CustomBar(b.OpenTime, b.Open, b.High, b.Low, b.Close, b.TickVolume)));
            };

            Print("Custom time frame added.");
        }

        private void OnClearCacheClick(ButtonClickEventArgs obj)
        {
            if (_dataSource.ClearCache())
            {
                Print($"Data source '{_dataSource.Name}' cached data cleared.");
                return;
            }

            Print($"Data source '{_dataSource.Name}' cached data clear failed.");
        }

        private void OnRemoveAllDataClick(ButtonClickEventArgs obj)
        {
            foreach (var (_, data) in _addedData)
            {
                File.Delete(data.FilePath);
            }

            LocalStorage.Remove("Data", LocalStorageScope.Type);
            LocalStorage.Flush(LocalStorageScope.Type);

            _addedData.Clear();

            Print("All added data has been removed.");
        }

        private void OnAddClick(ButtonClickEventArgs obj)
        {
            if (_symbolNameTextBox.Text.Length == 0 || Symbols.GetSymbol(_symbolNameTextBox.Text) is not { } symbol)
            {
                Print($"Invalid or empty symbol name: {_symbolNameTextBox.Text}");
                return;
            }

            if (string.IsNullOrWhiteSpace(_timeFrameCombobox.SelectedItem) || !TimeFrame.TryParse(_timeFrameCombobox.SelectedItem, out var selectedTimeFrame))
            {
                Print($"Invalid time frame: {_timeFrameCombobox.SelectedItem}");
                return;
            }

            if (string.IsNullOrWhiteSpace(_selectedFilePath))
            {
                Print($"Invalid file path: {_selectedFilePath}");
                return;
            }

            var dataType = selectedTimeFrame == TimeFrame.Tick
                ? BacktestingDataSourceDataType.Tick
                : selectedTimeFrame == TimeFrame.Minute
                    ? BacktestingDataSourceDataType.M1OpenPrices
                    : BacktestingDataSourceDataType.OpenPrices;

            var dataId = new DataId(symbol.Name, selectedTimeFrame.Name, dataType);

            _panel.IsEnabled = false;

            BeginInvokeOnMainThread(() =>
            {
                try
                {
                    var minMaxTime = GetMinMaxTime(_selectedFilePath);
                    var data = new Data(_selectedFilePath, minMaxTime);

                    _addedData[dataId] = data;

                    SaveToLocalStorage(dataId, data);

                    Print($"Data for symbol {symbol} and time frame {selectedTimeFrame} is added: {_selectedFilePath}, Min/Max Time: {minMaxTime}");
                }
                finally
                {
                    _panel.IsEnabled = true;
                }
            });
        }

        private void SaveToLocalStorage(DataId dataId, Data data)
        {
            var existingData = LocalStorage.GetObject<List<(DataId DataId, Data Data)>>("Data", LocalStorageScope.Type)
                               ?? new List<(DataId DataId, Data Data)>();

            existingData.Add((dataId, data));

            LocalStorage.SetObject("Data", existingData, LocalStorageScope.Type);
            LocalStorage.Flush(LocalStorageScope.Type);
        }


        private void OnShowDataClick(ButtonClickEventArgs obj)
        {
            var existingData =
                LocalStorage.GetObject<List<(DataId DataId, Data Data)>>("Data", LocalStorageScope.Type);

            if (existingData is null)
                return;

            Print("Showing data");

            foreach (var (dataId, data) in existingData)
            {
                Print($"Data '{dataId}' with '{data}'");
            }
        }

        private void LoadFromLocalStorage()
        {
            var existingData =
                LocalStorage.GetObject<List<(DataId DataId, Data Data)>>("Data", LocalStorageScope.Type);

            if (existingData is null)
                return;

            foreach (var (dataId, data) in existingData)
            {
                _addedData[dataId] = data with {MinMaxTime = data.MinMaxTime with
                {
                    MinTime = DateTime.SpecifyKind(data.MinMaxTime.MinTime, DateTimeKind.Utc),
                    MaxTime = DateTime.SpecifyKind(data.MinMaxTime.MaxTime, DateTimeKind.Utc)
                }};

                Print($"Added data '{dataId}' from local storage");
            }
        }

        private void OnSelectFileButtonClicked(ButtonClickEventArgs obj)
        {
            var openFileDialog = new OpenFileDialog();

            _panel.IsEnabled = false;
            _selectFileButton.Text = "Please wait...";

            BeginInvokeOnMainThread(() =>
            {
                try
                {
                    var result = openFileDialog.ShowDialog();

                    if (result != FileDialogResult.OK)
                        return;

                    _selectedFilePath = openFileDialog.FileName;
                }
                finally
                {
                    _selectFileButton.Text = "Select File";
                    _panel.IsEnabled = true;
                }
            });
        }

        private IEnumerable<TimeFrame> GetTimeFrames()
        {
            var timeFrameFields = typeof(TimeFrame).GetFields(BindingFlags.Static | BindingFlags.Public);

            foreach (var timeFrameField in timeFrameFields)
            {
                if (timeFrameField.GetValue(null) is not TimeFrame timeFrame)
                    continue;

                yield return timeFrame;
            }
        }

        private void OnDataRequested(BacktestingDataRequest request)
        {
            request.StatusChanged += request_StatusChanged;

            Print($"Data Request from {request.StartTime} to {request.EndTime}");

            var dataId = GetDataId(request.PriceDataSourceId, request.DataType);

            if (!_addedData.TryGetValue(dataId, out var data))
            {
                request.Fail($"Data not found for '{dataId}'.");

                return;
            }

            switch (request.DataType)
            {
                case BacktestingDataSourceDataType.Tick:
                    var ticks = GetRequestTicks(dataId, data, request);
                    Print($"Sending ticks.");

                    request.Complete(ticks);
                    break;
                default:
                    var bars = GetRequestBars(dataId, data, request);
                    Print($"Sending bars.");

                    request.Complete(bars);
                    break;
            }
        }

        private BacktestingData GetRequestTicks(DataId dataId, Data data, BacktestingDataRequest request)
        {
            if (!_cachedTickData.TryGetValue(dataId, out var tickData))
            {
                tickData = CacheTickData(dataId, data);

                _cachedTickData[dataId] = tickData;
            }

            var requestData = new List<BacktestingTick>();

            for (var i = DateOnly.FromDateTime(request.StartTime); i <= DateOnly.FromDateTime(request.EndTime); i = i.AddDays(1))
            {
                if (!tickData.TryGetValue(i, out var ticks))
                    continue;

                requestData.AddRange(ticks);
            }

            return new BacktestingTickData(requestData);
        }

        private BacktestingData GetRequestBars(DataId dataId, Data data, BacktestingDataRequest request)
        {
            if (!_cachedBarData.TryGetValue(dataId, out var barsData))
            {
                barsData = CacheBarData(dataId, data);

                _cachedBarData[dataId] = barsData;
            }

            return new BacktestingBarsData(barsData.Where(b => b.Time >= request.StartTime && b.Time <= request.EndTime).ToArray());
        }

        private List<BacktestingBar> CacheBarData(DataId dataId, Data data)
        {
            var result = new List<BacktestingBar>();

            using var fileStream = File.OpenRead(data.FilePath);
            using var streamReader = new StreamReader(fileStream);

            while (streamReader.ReadLine() is {} line)
            {
                var lineSplit = line.Split(',');

                if (lineSplit.Length != 6)
                {
                    throw new InvalidOperationException($"Invalid data format for '{dataId}'.");
                }

                result.Add(new BacktestingBar(DateTime.Parse(lineSplit[0]).ToUniversalTime(), double.Parse(lineSplit[1]), double.Parse(lineSplit[2]), double.Parse(lineSplit[3]), double.Parse(lineSplit[4]), long.Parse(lineSplit[5])));
            }

            return result;
        }

        private Dictionary<DateOnly, List<BacktestingTick>> CacheTickData(DataId dataId, Data data)
        {
            var result = new Dictionary<DateOnly, List<BacktestingTick>>();

            using var fileStream = File.OpenRead(data.FilePath);
            using var streamReader = new StreamReader(fileStream);

            while (streamReader.ReadLine() is {} line)
            {
                var lineSplit = line.Split(',');

                if (lineSplit.Length != 3)
                {
                    throw new InvalidOperationException($"Invalid data format for '{dataId}'.");
                }

                var time = DateTime.Parse(lineSplit[0]).ToUniversalTime();
                var date = DateOnly.FromDateTime(time);

                if (!result.TryGetValue(date, out var dateTicks))
                {
                    dateTicks = new List<BacktestingTick>();

                    result.Add(date, dateTicks);
                }

                dateTicks.Add(new BacktestingTick(time, double.Parse(lineSplit[1]), double.Parse(lineSplit[2])));
            }

            return result;
        }

        private void request_StatusChanged(BacktestingDataRequestStatusChangedEventArgs args)
        {
            Print($"Request '{args.DataRequest.PriceDataSourceId}' status changed: {args.DataRequest.Status}");
        }

        private BacktestingMinMaxTime OnMinMaxTimeRequested(BacktestingDataSourceMinMaxTimeArgs args)
        {
            Print($"Min/Max time requested, {args.PriceDataSourceId}, {args.DataType}");

            var dataId = GetDataId(args.PriceDataSourceId, args.DataType);

            Print($"Min/Max time request DataId: {dataId}");

            if (!_addedData.TryGetValue(dataId, out var data))
            {
                throw new InvalidOperationException("No data");
                //return default;
            }

            Print($"Min/Max time sent, {data.MinMaxTime}");

            return data.MinMaxTime;
        }

        private DataId GetDataId(PriceDataSourceId priceDataSourceId, BacktestingDataSourceDataType dateType)
        {
            return new DataId(priceDataSourceId.Symbol.Name, dateType switch
            {
                BacktestingDataSourceDataType.Tick => TimeFrame.Tick.Name,
                BacktestingDataSourceDataType.M1OpenPrices => TimeFrame.Minute.Name,
                BacktestingDataSourceDataType.OpenPrices when _customTimeFrame != null && priceDataSourceId.TimeFrame == _customTimeFrame.TimeFrame => TimeFrame.Hour.Name,
                _ => priceDataSourceId.TimeFrame.Name
            }, dateType);
        }

        private BacktestingMinMaxTime GetMinMaxTime(string filePath)
        {
            using var fileStream = File.OpenRead(filePath);
            using var streamReader = new StreamReader(fileStream);

            string firstLine = null;
            string lastLine = null;

            while (streamReader.ReadLine() is {} line)
            {
                if (firstLine == null)
                    firstLine = line;

                lastLine = line;
            }

            Print($"First Line: {firstLine}");
            Print($"Last Line: {lastLine}");

            return new(
                !string.IsNullOrWhiteSpace(firstLine) ? DateTime.Parse(firstLine.Split(',')[0]).ToUniversalTime() : default,
                !string.IsNullOrWhiteSpace(lastLine) ? DateTime.Parse(lastLine.Split(',')[0]).ToUniversalTime() : default);
        }

        private readonly record struct DataId(string SymbolName, string TimeFrameName, BacktestingDataSourceDataType DataType);
        private readonly record struct Data(string FilePath, BacktestingMinMaxTime MinMaxTime);
    }
}

Operations

Register a data source

Basic syntax:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
var options = new BacktestingDataSourceOptions(
    SupportedDataTypes: BacktestingDataSourceDataType.Tick | BacktestingDataSourceDataType.OpenPrices,
    MinMaxTimeHandler: args => new BacktestingMinMaxTime(DateTime.Parse("2023-01-01"), DateTime.Parse("2024-01-01")),
    DataRequestHandler: request =>
    {
        var data = LoadFromCsv(request); // your logic
        request.Complete(data);
    }
);

var dataSource = Backtesting.DataSources.Add("MyCSVData", options);

Inside the plugin:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
protected override void OnStart()
{

    LoadFromLocalStorage();

    var options = new BacktestingDataSourceOptions(
        BacktestingDataSourceDataType.Tick
        | BacktestingDataSourceDataType.M1OpenPrices
        | BacktestingDataSourceDataType.OpenPrices,
        OnMinMaxTimeRequested,
        OnDataRequested
    );

    _dataSource = Backtesting.DataSources.Add("CSV", options);

    var aspBlock = Asp.SymbolTab.AddBlock("Custom Data Source CSV Test");

    aspBlock.Child = GetAddDataPanel();
    aspBlock.Height = 400;
}

Serve data on request

Each BacktestingDataRequest contains:

  • .StartTime, .EndTime – the period requested
  • .PriceDataSourceId – the symbol/timeframe combo
  • .DateType – tick, m1 or OHLCV
  • .Complete(data) – call this once the data is ready
  • .Fail("reason") – call this if the request cannot be fulfilled

Example handler:

1
2
3
4
5
void OnDataRequested(BacktestingDataRequest request)
{
    var bars = LoadBarsFromCsv("mydata.csv", request.StartTime, request.EndTime);
    request.Complete(new BacktestingBarsData(bars));
}

Inside the plugin:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
private void OnDataRequested(BacktestingDataRequest request)
{
    request.StatusChanged += request_StatusChanged;

    Print($"Data Request from {request.StartTime} to {request.EndTime}");

    var dataId = GetDataId(request.PriceDataSourceId, request.DataType);

    if (!_addedData.TryGetValue(dataId, out var data))
    {
        request.Fail($"Data not found for '{dataId}'.");
        return;
    }

    switch (request.DataType)
    {
        case BacktestingDataSourceDataType.Tick:
            var ticks = GetRequestTicks(dataId, data, request);
            Print($"Sending ticks.");
            request.Complete(ticks);
            break;

        default:
            var bars = GetRequestBars(dataId, data, request);
            Print($"Sending bars.");
            request.Complete(bars);
            break;
    }
}

Handle time range availability

This tells the engine which period is available for the backtest and prevents out-of-bounds errors.

Basic syntax:

1
2
BacktestingMinMaxTime MinMax(DateTime min, DateTime max)
    => new BacktestingMinMaxTime(min, max);

Inside the plugin:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
private BacktestingMinMaxTime OnMinMaxTimeRequested(BacktestingDataSourceMinMaxTimeArgs args)
{
    Print($"Min/Max time requested, {args.PriceDataSourceId}, {args.DataType}");

    var dataId = GetDataId(args.PriceDataSourceId, args.DataType);

    Print($"Min/Max time request DataId: {dataId}");

    if (!_addedData.TryGetValue(dataId, out var data))
    {
        throw new InvalidOperationException("No data");
    }

    Print($"Min/Max time sent, {data.MinMaxTime}");

    return data.MinMaxTime;
}

Combine with custom periods (optional)

You can bind a data source to a custom periods.

Basic syntax:

1
2
3
4
5
6
7
8
var customTf = TimeFrameManager.Custom.Add("My 45min");

customTf.BarsNeeded = args =>
{
    var baseBars = LoadBarsFromCsv("source.csv");
    var grouped = AggregateBarsTo45min(baseBars);
    args.CustomBars.AppendBars(grouped);
};

Inside the plugin:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
private void OnAddCustomTimeFrameClick(ButtonClickEventArgs obj)
{
    _customTimeFrame = TimeFrameManager.Custom.Add("Custom Data Source Test (h1)");

    _customTimeFrame.BarsNeeded = args =>
    {
        Print($"Custom time frame bars needed for symbol '{args.CustomBars.Symbol.Name}'.");

        var bars = MarketData.GetBars(TimeFrame.Hour, args.CustomBars.Symbol.Name);

        Print($"Appending custom time frame bars '{bars.Count}' for symbol '{args.CustomBars.Symbol.Name}'.");

        args.CustomBars.AppendBars(bars.Select(b => new CustomBar(
            b.OpenTime,
            b.Open,
            b.High,
            b.Low,
            b.Close,
            b.TickVolume
        )));
    };

    Print("Custom time frame added.");
}

Tips

  • Purge old results when updating data using BacktestingDataSource.ClearCache().

  • Persist source references using LocalStorage for reload on restart.

  • Use PluginPanel, TextBox and FileDialog to build visual data selectors for convenience.

Practical ideas

Aggregate bars into custom periods

You can create bespoke chart resolutions, such as 45-minute bars, by aggregating existing m1 data. This approach lets you backtest your strategy on non-standard intervals, and you may uncover price patterns that do not appear on common periods such as m30 or h1.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
_customTimeFrame = TimeFrameManager.Custom.Add("Custom 45-min");

_customTimeFrame.BarsNeeded = args =>
{
    var m1Bars = MarketData.GetBars(TimeFrame.Minute, args.CustomBars.Symbol.Name);
    var groupedBars = m1Bars
        .GroupBy(bar => bar.OpenTime.Ticks / TimeSpan.FromMinutes(45).Ticks)
        .Select(group => new CustomBar(
            group.First().OpenTime,
            group.First().Open,
            group.Max(b => b.High),
            group.Min(b => b.Low),
            group.Last().Close,
            group.Sum(b => b.TickVolume)
        ));

    args.CustomBars.AppendBars(groupedBars);
};

Trade synthetic indices built from multiple symbols

Consider backtesting strategies on custom indices by averaging or combining price data from several symbols. For example, you can create a synthetic risk-on index using EURUSD, GBPUSD and AUDUSD, and then backtest it like any other symbol.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
var base1 = Symbols.GetSymbol("EURUSD");
var base2 = Symbols.GetSymbol("GBPUSD");
var base3 = Symbols.GetSymbol("AUDUSD");

var syntheticSymbol = CustomSymbols.Add("SyntheticRiskOn", Account.Asset, Assets.GetAsset("USD"));
syntheticSymbol.BarsNeeded = args =>
{
    MarketData.GetBarsAsync(TimeFrame.Minute, base1.Name, bars1 =>
    {
        MarketData.GetBarsAsync(TimeFrame.Minute, base2.Name, bars2 =>
        {
            MarketData.GetBarsAsync(TimeFrame.Minute, base3.Name, bars3 =>
            {
                var bars = bars1.Zip(bars2, (b1, b2) => (b1, b2))
                                .Zip(bars3, (pair, b3) =>
                                {
                                    var (b1, b2) = pair;
                                    return new CustomBar(
                                        b1.OpenTime,
                                        (b1.Open + b2.Open + b3.Open) / 3,
                                        (b1.High + b2.High + b3.High) / 3,
                                        (b1.Low + b2.Low + b3.Low) / 3,
                                        (b1.Close + b2.Close + b3.Close) / 3,
                                        (b1.TickVolume + b2.TickVolume + b3.TickVolume)
                                    );
                                });

                args.CustomBars.AppendBars(bars);
            });
        });
    });
};

If you get positive backtesting results, you can proceed to trade the custom symbol.

Run Monte Carlo simulations with price noise

Inject slight randomness into historical price data to simulate real-world imperfections like slippage or price spikes. Repeating backtests with different noise patterns helps you uncover fragile strategies and validate robustness under uncertainty.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
Random rand = new Random();
foreach (var bar in bars)
{
    var noise = 1 + rand.NextDouble() * 0.001 - 0.0005;
    modifiedBars.Add(new BacktestingBar(
        bar.Time,
        bar.Open * noise,
        bar.High * noise,
        bar.Low * noise,
        bar.Close * noise,
        bar.Volume
    ));
}
