Chart templates

The ChartTemplates collection and ChartTemplate objects allow you to programmatically save, manage and apply chart templates, without having to deal with manual configurations. This functionality is useful for:

Traders who want algorithms to configure and handle consistent chart layouts, smooth template switching, setup capturing and storage, monitoring and more.
Developers who need repeatable chart environments for advanced analysis, monitoring, debugging or deployment of helper indicators and cBots across many charts.

Core concepts

A single ChartTemplate exposes:

template.Apply(Chart) to apply a template to a target chart.
template.Indicators to add or remove indicators, access their parameters.
template.Robots to add or remove cBots.
template.ColorSettings to work with chart or theme colours
template.DisplaySettings to work with chart type, zoom and various toggles, including positions, orders, grid, sentiment and more.

The ChartTemplates object, a built-in collection, provides:

foreach (var t in ChartTemplates) ... for enumeratation.
ChartTemplates.Get(name), ChartTemplates.Contains(name) for querying.
ChartTemplates.Create(name) for creating empty templates.
ChartTemplates.Create(name, Chart) for capturing the current chart configuration.
ChartTemplates.Duplicate(newName, sourceTemplate) for duplicating templates.
ChartTemplates.Remove(template) for removing templates.
ChartTemplates.DefaultTemplate for applying the default template (get or set).

It also exposes events:

ChartTemplates.Added += ...
ChartTemplates.Removed += ...

The table below provides a summary of standard operations.

Operation	Examples
Template lifecycle	Create an empty template Create a template from the current chart Duplicate a template Remove a template
Template discovery	List templates and show data Check if a template exists React to a template being added or removed
Applying templates	Apply a template to a chart Change default template
Template composition	Add or remove an indicator Modify the parameters of an indicator Add or remove a cBot
Layout and visualisation settings	Set the chart colours Enable or disable the chart display options Change the chart type Adjust the zoom level

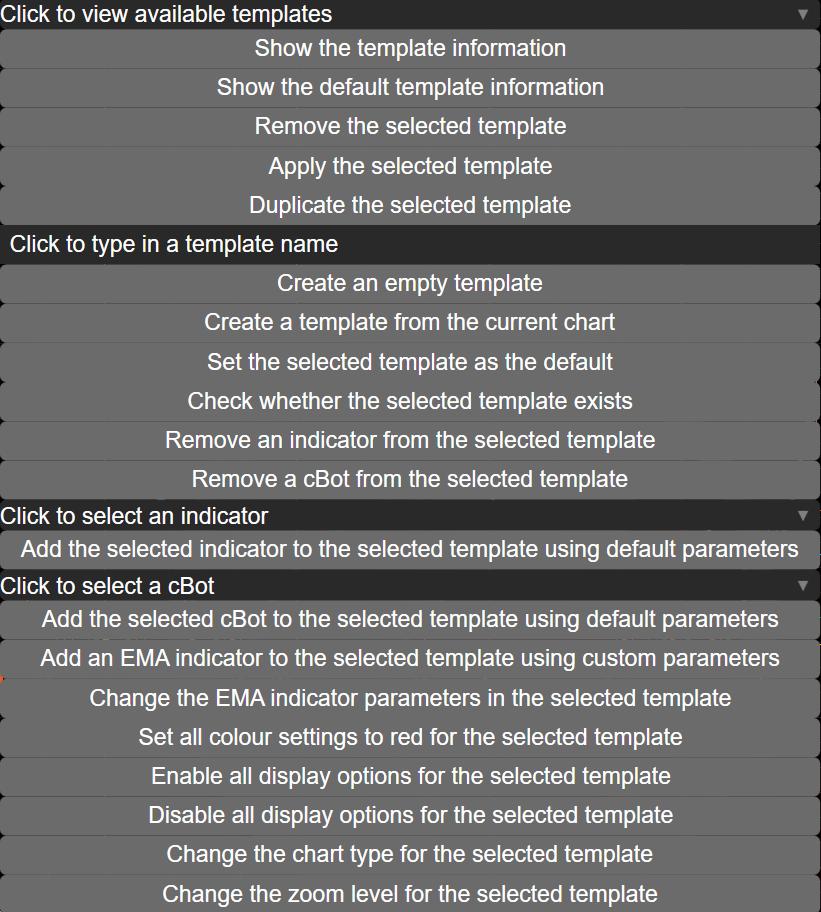

Consider a Chart Templates Manager cBot, which when added and started on a chart, displays a menu for performing various tasks with chart templates.

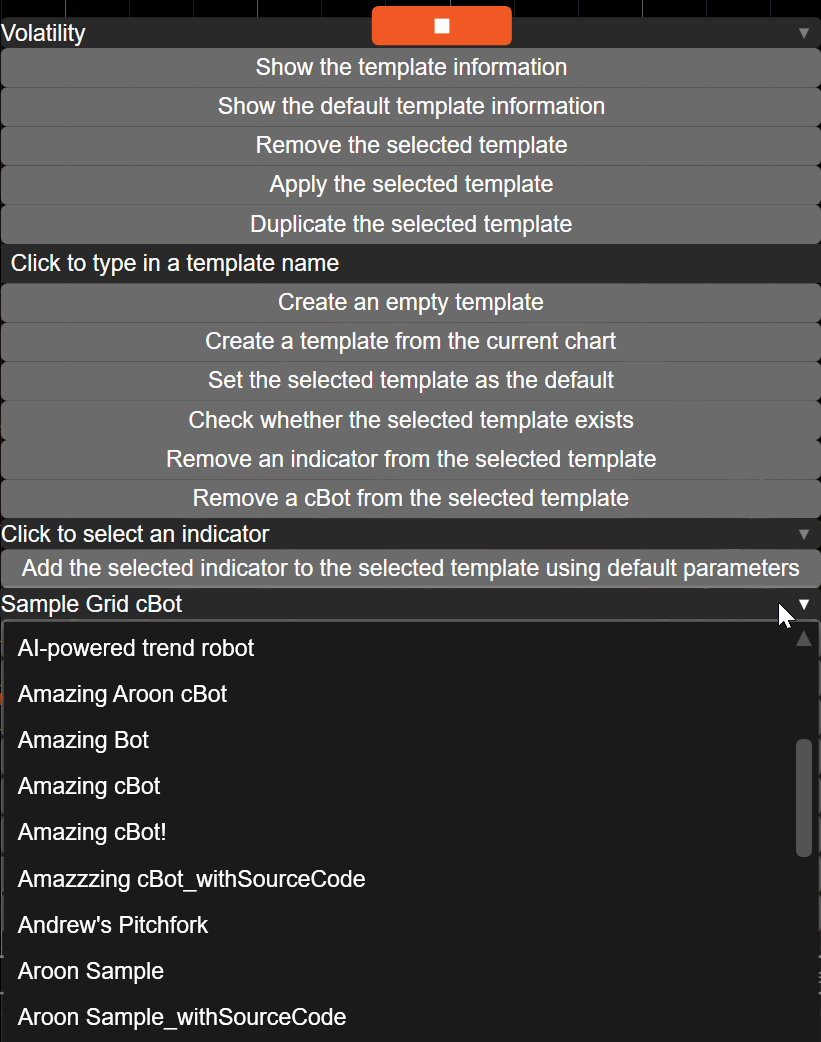

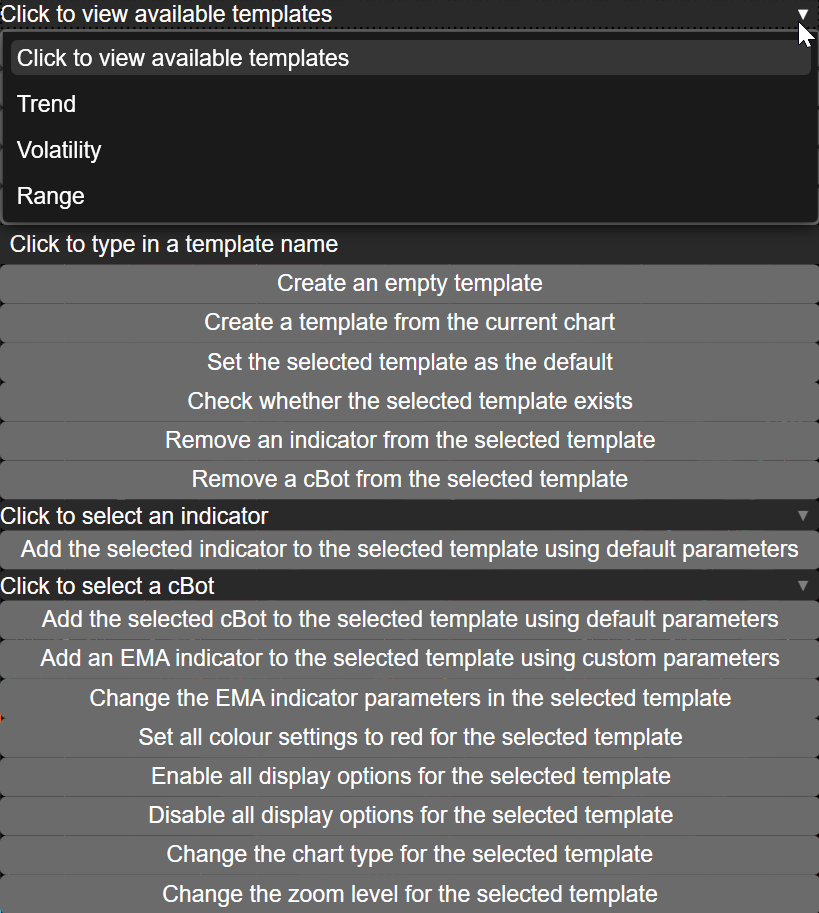

Default viewSelecting templatesChoosing indicatorsAdding cBots

Code

using System;
using cAlgo.API;
using cAlgo.API.Collections;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;
using System.Linq;

namespace cAlgo.Robots
{
    [Robot(AccessRights = AccessRights.None, AddIndicators = true)]
    public class ChartTemplatesManager : Robot
    {
        protected override void OnStart()
        {
            var templatesComboBox = new ComboBox();

            templatesComboBox.AddItem("Click to view available templates");
            templatesComboBox.SelectedItem = "Click to view available templates";

            foreach (var template in ChartTemplates)
            {
                templatesComboBox.AddItem(template.Name);
            }

            ChartTemplates.Added += args =>
            {
                templatesComboBox.AddItem(args.ChartTemplate.Name);
                Print($"A new template was added: {args.ChartTemplate.Name}");
            };

            ChartTemplates.Removed += args =>
            {
                templatesComboBox.RemoveItem(args.ChartTemplate.Name);
                Print($"A template was removed: {args.ChartTemplate.Name}");
            };

            var showTemplateInfoButton = new Button { Text = "Show the template information" };

            showTemplateInfoButton.Click += args =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                Print($"Name: {template.Name} | Bots #: {template.Robots.Count} | Indicators #: {template.Indicators.Count}");
            };

            var showDefaultTemplateInfoButton = new Button { Text = "Show the default template information" };

            showDefaultTemplateInfoButton.Click += args =>
            {
                Print($"Name: {ChartTemplates.DefaultTemplate.Name} | Bots #: {ChartTemplates.DefaultTemplate.Robots.Count} | Indicators #: {ChartTemplates.DefaultTemplate.Indicators.Count}");
            };

            var removeTemplateButton = new Button { Text = "Remove the selected template" };

            removeTemplateButton.Click += _ => ChartTemplates.Remove(ChartTemplates.Get(templatesComboBox.SelectedItem));

            var applyTemplateButton = new Button { Text = "Apply the selected template" };

            applyTemplateButton.Click += _ => ChartTemplates.Get(templatesComboBox.SelectedItem).Apply(Chart);

            var duplicateTemplateButton = new Button { Text = "Duplicate the selected template" };

            duplicateTemplateButton.Click += _ => ChartTemplates.Duplicate($"{templatesComboBox.SelectedItem} Duplicate", ChartTemplates.Get(templatesComboBox.SelectedItem));

            var createTemplateTextBox = new TextBox { Text = "Click to type in a template name" };

            var createEmptyTemplateButton = new Button { Text = "Create an empty template" };

            createEmptyTemplateButton.Click += _ => ChartTemplates.Create(createTemplateTextBox.Text);

            var createTemplateBasedOnChartButton = new Button { Text = "Create a template from the current chart" };

            createTemplateBasedOnChartButton.Click += _ => ChartTemplates.Create(createTemplateTextBox.Text, Chart);

            var changeDefaultTemplateToSelectedButton = new Button { Text = "Set the selected template as the default" };

            changeDefaultTemplateToSelectedButton.Click += _ => ChartTemplates.DefaultTemplate = ChartTemplates.Get(templatesComboBox.SelectedItem);

            var checkSelectedTemplateExistsButton = new Button { Text = "Check whether the selected template exists" };

            checkSelectedTemplateExistsButton.Click += _ => Print($"The template '{templatesComboBox.SelectedItem}' exists: {ChartTemplates.Contains(templatesComboBox.SelectedItem)}");

            var removeSelectedTemplateIndicator = new Button { Text = "Remove an indicator from the selected template" };

            removeSelectedTemplateIndicator.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                if (template.Indicators.Count == 0)
                    return;

                Print($"Removal result: {template.Indicators.Remove(template.Indicators.First())}");
            };

            var removeSelectedTemplateBot = new Button { Text = "Remove a cBot from the selected template" };

            removeSelectedTemplateBot.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                if (template.Robots.Count == 0)
                    return;

                Print($"Removal result: {template.Robots.Remove(template.Robots.First())}");
            };


            var indicatorsCombobox = new ComboBox();

            indicatorsCombobox.AddItem("Click to select an indicator");
            indicatorsCombobox.SelectedItem = "Click to select an indicator";

            foreach (var indicator in AlgoRegistry.Indicators.OrderBy(i => i.Name))
            {
                indicatorsCombobox.AddItem(indicator.Name);
            }

            var addIndicatorWithDefaultParametersToSelectedTemplate = new Button { Text = "Add the selected indicator to the selected template using default parameters" };

            addIndicatorWithDefaultParametersToSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                if (string.IsNullOrWhiteSpace(indicatorsCombobox.SelectedItem))
                {
                    Print("No indicator is selected.");
                    return;
                }

                Print($"Added the indicator {indicatorsCombobox.SelectedItem}.");

                template.Indicators.Add(indicatorsCombobox.SelectedItem);
            };

            var robotsCombobox = new ComboBox();

            robotsCombobox.AddItem("Click to select a cBot");
            robotsCombobox.SelectedItem = "Click to select a cBot";

            foreach (var robot in AlgoRegistry.Robots.OrderBy(i => i.Name))
            {
                robotsCombobox.AddItem(robot.Name);
            }

            var addRobotWithDefaultParametersToSelectedTemplate = new Button { Text = "Add the selected cBot to the selected template using default parameters" };

            addRobotWithDefaultParametersToSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                if (string.IsNullOrWhiteSpace(robotsCombobox.SelectedItem))
                {
                    Print("No cBot is selected.");
                    return;
                }

                Print($"Added the cBot {robotsCombobox.SelectedItem}.");

                template.Robots.Add(robotsCombobox.SelectedItem);
            };

            var addEmaIndicatorWithDifferentParametersToSelectedTemplate = new Button { Text = "Add an EMA indicator to the selected template using custom parameters" };

            addEmaIndicatorWithDifferentParametersToSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                var emaType = AlgoRegistry.Get("Exponential Moving Average", AlgoKind.StandardIndicator) as IndicatorType;

                Print($"Added the indicator {emaType.Name} with a period of 100.");

                template.Indicators.Add(emaType, Bars.OpenPrices, 100);
            };

            var changeEmaIndicatorParametersForSelectedTemplate = new Button { Text = "Change the EMA indicator parameters in the selected template" };

            changeEmaIndicatorParametersForSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                var emaType = AlgoRegistry.Get("Exponential Moving Average", AlgoKind.StandardIndicator) as IndicatorType;

                if (template.Indicators.FirstOrDefault(i => i.Type == emaType) is not { } templateIndicator)
                {
                    Print($"The EMA indicator was not found in the template '{template.Name}'.");
                    return;
                }

                Print($"Changing the indicator {emaType.Name} period to 200.");

                templateIndicator.Parameters["Periods"].Value = 200;
            };

            var setAllColorSettingsToRedForSelectedTemplate = new Button { Text = "Set all colour settings to red for the selected template" };

            setAllColorSettingsToRedForSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                template.ColorSettings.AskPriceLineColor = Color.Red;
                template.ColorSettings.BidPriceLineColor = Color.Red;
                template.ColorSettings.BackgroundColor = Color.Red;
                template.ColorSettings.BearFillColor = Color.Red;
                template.ColorSettings.BearOutlineColor = Color.Red;
                template.ColorSettings.BullFillColor = Color.Red;
                template.ColorSettings.BullOutlineColor = Color.Red;
                template.ColorSettings.BuyColor = Color.Red;
                template.ColorSettings.ForegroundColor = Color.Red;
                template.ColorSettings.GridLinesColor = Color.Red;
                template.ColorSettings.LosingDealColor = Color.Red;
                template.ColorSettings.PeriodSeparatorColor = Color.Red;
                template.ColorSettings.SellColor = Color.Red;
                template.ColorSettings.TickVolumeColor = Color.Red;
                template.ColorSettings.WinningDealColor = Color.Red;
                template.ColorSettings.AreaFillColor = Color.Red;
            };

            var enableAllDisplayOptionsForSelectedTemplate = new Button { Text = "Enable all display options for the selected template" };

            enableAllDisplayOptionsForSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                template.DisplaySettings.AskPriceLine = true;
                template.DisplaySettings.Bars = true;
                template.DisplaySettings.BidPriceLine = true;
                template.DisplaySettings.ChartScale = true;
                template.DisplaySettings.DealMap = true;
                template.DisplaySettings.Grid = true;
                template.DisplaySettings.IndicatorTitles = true;
                template.DisplaySettings.MarketSentiment = true;
                template.DisplaySettings.Orders = true;
                template.DisplaySettings.PeriodSeparators = true;
                template.DisplaySettings.Positions = true;
                template.DisplaySettings.PriceAlerts = true;
                template.DisplaySettings.PriceAxisOverlayButtons = true;
                template.DisplaySettings.QuickTradeButtons = true;
                template.DisplaySettings.Targets = true;
                template.DisplaySettings.TickVolume = true;
                template.DisplaySettings.AddRobotButton = true;
            };

            var disableAllDisplayOptionsForSelectedTemplate = new Button { Text = "Disable all display options for the selected template" };

            disableAllDisplayOptionsForSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                template.DisplaySettings.AskPriceLine = false;
                template.DisplaySettings.Bars = false;
                template.DisplaySettings.BidPriceLine = false;
                template.DisplaySettings.ChartScale = false;
                template.DisplaySettings.DealMap = false;
                template.DisplaySettings.Grid = false;
                template.DisplaySettings.IndicatorTitles = false;
                template.DisplaySettings.MarketSentiment = false;
                template.DisplaySettings.Orders = false;
                template.DisplaySettings.PeriodSeparators = false;
                template.DisplaySettings.Positions = false;
                template.DisplaySettings.PriceAlerts = false;
                template.DisplaySettings.PriceAxisOverlayButtons = false;
                template.DisplaySettings.QuickTradeButtons = false;
                template.DisplaySettings.Targets = false;
                template.DisplaySettings.TickVolume = false;
                template.DisplaySettings.AddRobotButton = false;
            };

            var changeChartTypeForSelectedTemplate = new Button { Text = "Change the chart type for the selected template" };

            changeChartTypeForSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                template.DisplaySettings.ChartType = template.DisplaySettings.ChartType switch
                {
                    ChartType.Area => ChartType.Bars,
                    ChartType.Bars => ChartType.Candlesticks,
                    ChartType.Candlesticks => ChartType.Dots,
                    ChartType.Dots => ChartType.Hlc,
                    ChartType.Hlc => ChartType.Line,
                    _ => ChartType.Area
                };

                Print($"Changed the template '{template.Name}' chart type to '{template.DisplaySettings.ChartType}'.");
            };

            var changeZoomeLevelForSelectedTemplate = new Button { Text = "Change the zoom level for the selected template" };

            changeZoomeLevelForSelectedTemplate.Click += _ =>
            {
                if (string.IsNullOrWhiteSpace(templatesComboBox.SelectedItem))
                {
                    Print("No template is selected.");
                    return;
                }

                var template = ChartTemplates.Get(templatesComboBox.SelectedItem);

                template.DisplaySettings.ZoomLevel = template.DisplaySettings.ZoomLevel switch
                {
                    5 => 400,
                    400 => 5,
                    _ => 5
                };

                Print($"Changed the template '{template.Name}' zoom level to '{template.DisplaySettings.ZoomLevel}'.");
            };

            var panel = new StackPanel { Orientation = Orientation.Vertical, HorizontalAlignment = HorizontalAlignment.Center, VerticalAlignment = VerticalAlignment.Center };

            panel.AddChild(templatesComboBox);
            panel.AddChild(showTemplateInfoButton);
            panel.AddChild(showDefaultTemplateInfoButton);
            panel.AddChild(removeTemplateButton);
            panel.AddChild(applyTemplateButton);
            panel.AddChild(duplicateTemplateButton);
            panel.AddChild(createTemplateTextBox);
            panel.AddChild(createEmptyTemplateButton);
            panel.AddChild(createTemplateBasedOnChartButton);
            panel.AddChild(changeDefaultTemplateToSelectedButton);
            panel.AddChild(checkSelectedTemplateExistsButton);
            panel.AddChild(removeSelectedTemplateIndicator);
            panel.AddChild(removeSelectedTemplateBot);
            panel.AddChild(indicatorsCombobox);
            panel.AddChild(addIndicatorWithDefaultParametersToSelectedTemplate);
            panel.AddChild(robotsCombobox);
            panel.AddChild(addRobotWithDefaultParametersToSelectedTemplate);
            panel.AddChild(addEmaIndicatorWithDifferentParametersToSelectedTemplate);
            panel.AddChild(changeEmaIndicatorParametersForSelectedTemplate);
            panel.AddChild(setAllColorSettingsToRedForSelectedTemplate);
            panel.AddChild(enableAllDisplayOptionsForSelectedTemplate);
            panel.AddChild(disableAllDisplayOptionsForSelectedTemplate);
            panel.AddChild(changeChartTypeForSelectedTemplate);
            panel.AddChild(changeZoomeLevelForSelectedTemplate);

            Chart.AddControl(panel);
        }
    }
}

Practical applications

Capture the current setup

Develop algorithms that programmatically capture a chart's settings, including indicators, parameters, colours and others, and store them as a template. This allows you to automatically preserve a working setup during any phase of algo trading and apply it to any other charts.

This C# code demonstrates a cBot that captures and stores the template of a chart:

using System;
using cAlgo.API;
using cAlgo.API.Collections;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;
using System.Linq;

namespace cAlgo.Robots
{
    [Robot(AccessRights = AccessRights.None)]
    public class CaptureChartAsTemplate : Robot
    {
        [Parameter("Template Name", DefaultValue = "My Golden Layout")]
        public string TemplateName { get; set; }

        protected override void OnStart()
        {
            // If you want "overwrite", remove first (safe pattern).
            if (ChartTemplates.Contains(TemplateName))
            {
                var existing = ChartTemplates.Get(TemplateName);
                ChartTemplates.Remove(existing);
                Print($"Removed existing template '{TemplateName}' to recapture.");
            }

            // Capture everything from the CURRENT chart (indicators/robots/colors/display settings).
            var created = ChartTemplates.Create(TemplateName, Chart);

            Print($"Captured template '{created.Name}' from current chart. " +
                  $"Indicators={created.Indicators.Count}, Robots={created.Robots.Count}");
        }
    }
}

Create distinct workspaces

Structure your discretionary workflow into three dedicated chart layouts and switch between them instantly. A common discretionary workflow is:

Scan – minimal chart, fast loading, clean candles, no clutter.
Confirm – indicators and context overlays, such as trend/volatility filters.
Execute – show orders/positions/targets and quick trade buttons, hide anything distracting.

private void ApplyWorkspace(string name)
{
    if (ChartTemplates.Contains(name))
        ChartTemplates.Get(name).Apply(Chart);
}

Standardise trend trading

You typically rely on three core elements when trading trends: a trend filter such as an EMA, a momentum or overbought-oversold measure such as RSI and a clean candlestick chart with stable colours and readable overlays. You can save this configuration as a single template and apply it to any symbol or timeframe you open.

A standardised setup helps you avoid parameter inconsistencies, reduce setup errors and ensure that every chart follows the same decision framework.

var t = ChartTemplates.Get("Trend Setup");

t.Indicators.Add("Relative Strength Index");

var emaType = AlgoRegistry.Get("Exponential Moving Average", AlgoKind.StandardIndicator) as IndicatorType;
t.Indicators.Add(emaType, Bars.OpenPrices, 200);

t.DisplaySettings.ChartType = ChartType.Candlesticks;
t.DisplaySettings.ZoomLevel = 200;

t.Apply(Chart);

Create mean-reversion layouts

When trading mean reversion, you often rely on more indicator context, but you still want a clean and controlled chart. Use templates to decide exactly what remains visible during analysis.

Turn off quick trade buttons to prevent accidental entries. Hide the sentiment panel if it distracts you. Keep the grid and key levels visible for precise positioning. Choose the chart type that matches your approach, whether candlesticks for structure or a line chart for clarity.

var mr = ChartTemplates.Get("Mean Reversion");

mr.DisplaySettings.QuickTradeButtons = false;
mr.DisplaySettings.MarketSentiment = false;
mr.DisplaySettings.Grid = true;
mr.DisplaySettings.Orders = true;
mr.DisplaySettings.Positions = true;

mr.Apply(Chart);

Build monitoring templates

When you are in a trade, your priorities change. You need clear visibility of open positions, pending orders and target levels, along with a stable and consistent chart view. Keep your zoom level fixed, ensure price lines are clearly displayed and remove indicators that do not directly support management decisions.

var monitor = ChartTemplates.Get("Monitor");

monitor.DisplaySettings.Positions = true;
monitor.DisplaySettings.Orders = true;
monitor.DisplaySettings.Targets = true;
monitor.DisplaySettings.PriceAlerts = true;

monitor.DisplaySettings.IndicatorTitles = false;   // reduce noise
monitor.DisplaySettings.ZoomLevel = 150;

monitor.Apply(Chart);

Enforce visual standards

If you work within a team or follow a defined workstation style, use templates to standardise elements such as background colour, bull and bear candle colours, grid visibility and line styling. Apply the same template across all charts to ensure a uniform visual structure, reduce confusion and improve communication.

This setup becomes especially important when you share screenshots, conduct strategy reviews or hand off decisions.

var style = ChartTemplates.Get("House Style");

style.ColorSettings.BackgroundColor = Color.Black;
style.ColorSettings.ForegroundColor = Color.White;
style.ColorSettings.GridLinesColor = Color.Gray;
style.ColorSettings.BullFillColor = Color.Green;
style.ColorSettings.BearFillColor = Color.Red;

style.Apply(Chart);

Add volatility templates

When volatility shifts, your execution and analysis needs change. Create templates to define two distinct workspaces and switch between them as conditions evolve:

In the low volatility template, use a tighter zoom, reduce overlays and maintain a clean view suited for range trading.
In the high volatility template, use a wider zoom, clearer price lines, enable the grid and display positions and orders for tighter execution control.

private void ApplyRegimeTemplate(bool highVol)
{
    var name = highVol ? "HighVol" : "LowVol";
    if (ChartTemplates.Contains(name))
        ChartTemplates.Get(name).Apply(Chart);
}

Create one-click contexts

You often use different indicator parameters, zoom levels and visual preferences depending on whether you are scalping or swing trading. Instead of manually adjusting settings every time you switch timeframes, create dedicated templates for each view.

For example, define M1-Scalp for fast execution and tighter zoom, M15-Intraday for structured session trading and H1-Swing for broader context and smoother overlays.

private void ApplyTimeframeWorkspace(TimeFrame tf)
{
    var name =
        tf == TimeFrame.Minute ? "M1-Scalp" :
        tf == TimeFrame.Minute15 ? "M15-Intraday" :
        "H1-Swing";

    if (ChartTemplates.Contains(name))
        ChartTemplates.Get(name).Apply(Chart);
}

Build strategy playbooks

If you trade multiple strategy families, consider defining a dedicated template for each playbook. For example, you can:

Use a breakout playbook template with the grid enabled, orders and positions visible, a wider zoom and clean price lines for execution clarity.
Use a pullback playbook template with EMA and RSI applied, a normal zoom level and indicator titles visible.
Use a reversal playbook template with additional context indicators and a candle type that highlights wicks and structure.

With each playbook encoded as a template, you can switch environments based on signal type and keep your execution aligned with the strategy you are applying.

private void ApplyPlaybook(string playbook)
{
    var name = playbook switch
    {
        "Breakout" => "Breakout Playbook",
        "Pullback" => "Pullback Playbook",
        "Reversal" => "Reversal Playbook",
        _ => "Scan"
    };

    if (ChartTemplates.Contains(name))
        ChartTemplates.Get(name).Apply(Chart);
}
