Charts

cTrader charts graphically represent price movements of a symbol over time. A chart is the most basic tool for trading and technical analysis.

Note

In the Chart section of cTrader settings, you can set the mouse wheel to zoom or scroll the chart. Spinning the mouse wheel while holding Cmd performs the other action.

View other default hotkeys for cTrader Mac in a separate guide.

You can also drag the chart up and down, left and right to view the desired area.

Open a chart

There are several ways to open a new chart in cTrader Mac.

Double-click a symbol in the Market Watch panel and the corresponding chart will open. You can also right-click the needed symbol and select Open new chart in the context menu.

Image title

Alternatively, click the Open new chart button in the Chart toolbar and select a symbol from the list for which you want to open a chart.

Image title

If the Single-chart mode is on, you can add new charts by clicking the + icon located to the left of all tabs.

Image title

By accessing positions and pending orders in the Trade Watch panel and right-clicking them, you can open the corresponding charts from the context menu.

Image title

Finally, you can open a new chart or a new detached chart from the menu bar of cTrader Mac in the File menu. The hotkeys for these actions are Cmd+N and Cmd+Shift+N respectively.

Image title

To display another symbol in the active chart tab, click a symbol in the Market Watch panel or click a position or pending order in the Trade Watch panel. You can also switch between symbols in the chart tab or via the chart context menu.

Image title

Chart modes

In cTrader Mac, you can switch between single-chart and multi-chart modes by clicking the corresponding icons in the Chart toolbar.

Image title

Image title

Chart types

cTrader Mac offers several types of charts for trader convenience.

Image title

Learn more about chart types in cTrader.

Chart context menu

Click anywhere on your active chart to open the Chart context menu, which gives you quick access to many cTrader features and UI elements such as creating new orders, setting price alerts, modifying the chart and managing chart objects directly from the chart.

Image title

Learn more about the Chart context menu in our cTrader Web guide.

Chart tab

Regardless of the chart mode, you can detach specific charts and open them in a new window along with the Chart toolbar. To do so, click the Detach chart button in the top-right corner of each chart tab.

In the chart tab, you can modify the symbol displayed on the chart.

Image title

The period menu for each chart type is available in the chart tab to the right of the symbol selector.

Chart toolbar

The Chart toolbar is located above the charts area.

Image title

It contains the following tools:

  • Sidebar and Trade Watch controls
  • New order
  • Workspaces
  • Multi-chart mode
  • Single-chart mode
  • Open new chart
  • Zoom in/out
  • Chart types
  • Indicators
  • cBots

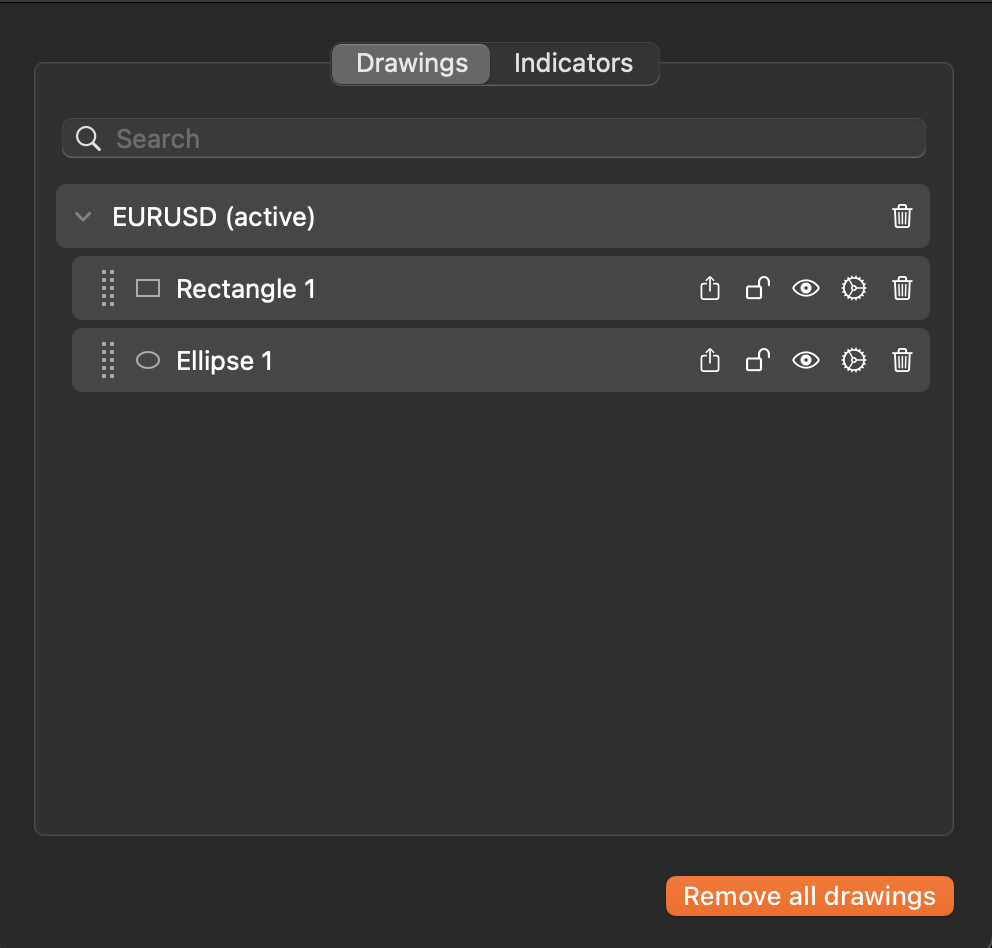

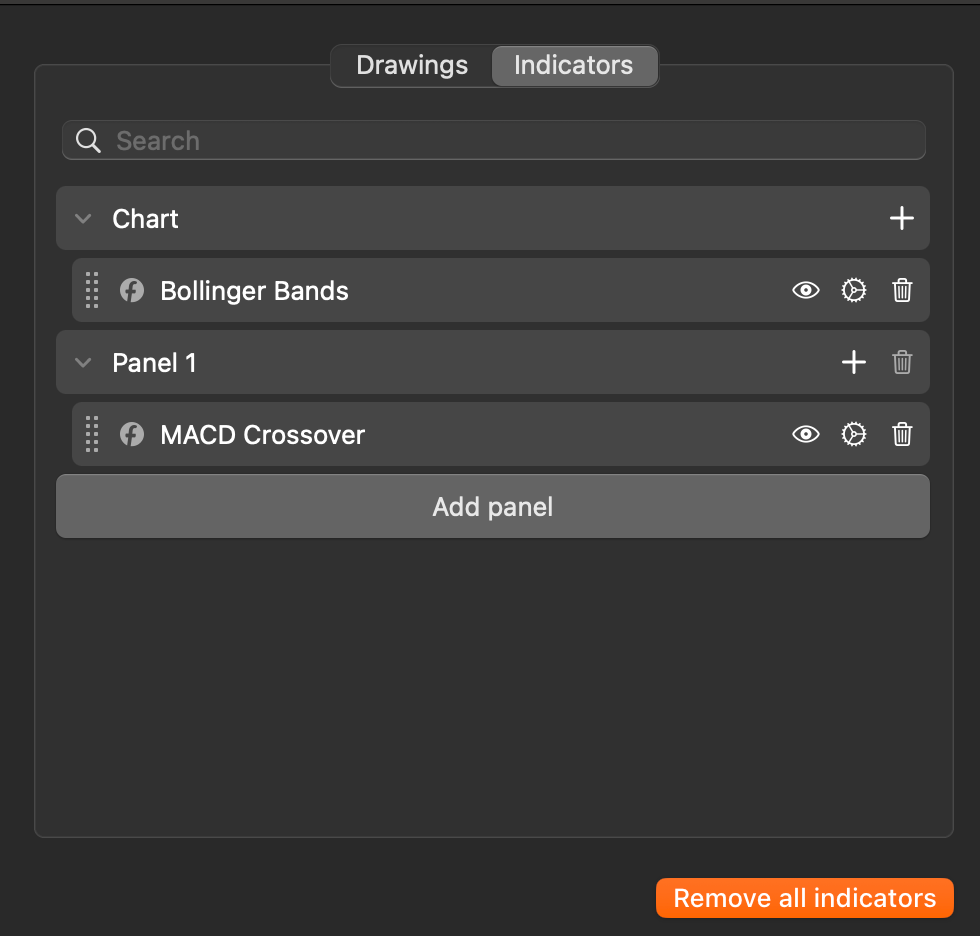

  • Object manager
  • Hide/show all drawings
  • Chart templates

Learn more about the Chart toolbar in our cTrader Windows guide.

Instrument toolbar

cTrader Mac offers a comprehensive set of line studies and special objects for advanced technical analysis.

Image title

The Instrument toolbar contains the following tools:

  • Cursor
  • Crosshair
  • Synchronised crosshair
  • Market snapshot
  • Lines
  • Equidistant price channel
  • Andrews' pitchfork
  • Fibonacci tools
  • Shape objects
  • Markers
  • Text
  • Colours
  • Chartshot
  • Price alert

Learn more about the Instrument toolbar in our cTrader Windows guide.
