TradeWatch Tab Sample

Overview

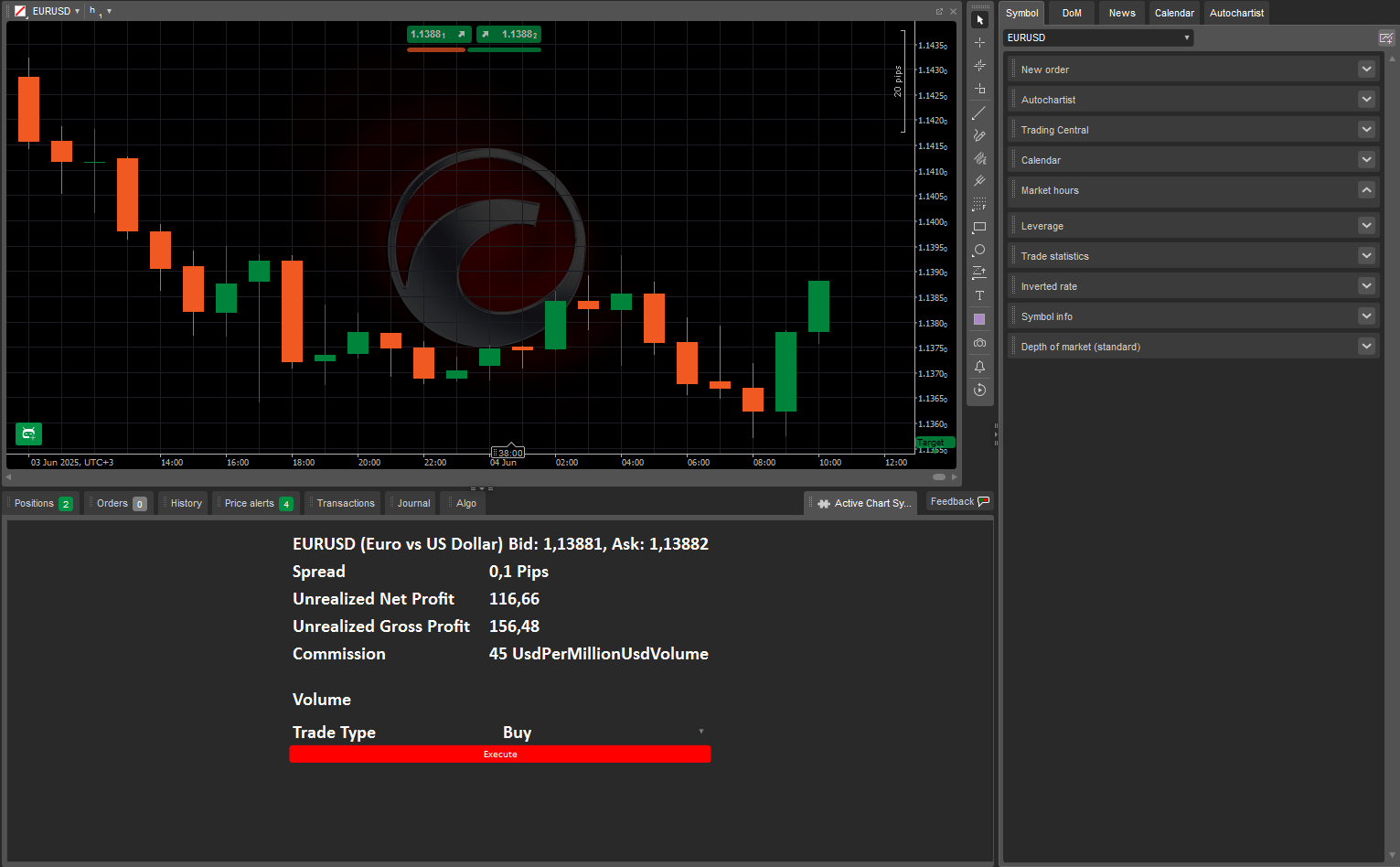

The TradeWatch Tab Sample plugin adds a new tab to Trade Watch, displaying live statistics and trading actions for the symbol in the active chart. It provides the following key functionalities:

  • Adds the plugin as a new tab in Trade Watch automatically.
  • Displays live trading statistics.
  • Enables market order execution for the current chart symbol.
  • Updates automatically when the active chart symbol changes.

The plugin runs through the dedicated Trade Watch tab, which reflects the active chart. It remains active while cTrader Windows or Mac is running and automatically releases system resources when stopped.

Plugin creation

Learn how to create plugins, using either C# or Python, in our step-by-step guides.

TradeWatch Tab Sample plugin code is available in our public C# and Python repositories. The same code is provided as a template in the algorithm creation wizard in cTrader Windows or Mac, or you can simply copy and use the snippet below:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
using cAlgo.API;

namespace cAlgo.Plugins
{
    [Plugin(AccessRights = AccessRights.None)]
    public class MyTradeWatchTabSample1 : Plugin
    {
        private SymbolStatsControl _symbolStatsControl;
        private TradeControl _tradeControl;

        protected override void OnStart()
        {
            var tab = TradeWatch.AddTab("Active Chart Symbol Stats");

            var panel = new StackPanel
                {Orientation = Orientation.Vertical, HorizontalAlignment = HorizontalAlignment.Center};

            _symbolStatsControl = new SymbolStatsControl {Margin = 10};
            _tradeControl = new TradeControl {Margin = 10};

            panel.AddChild(_symbolStatsControl);
            panel.AddChild(_tradeControl);

            tab.Child = panel;

            SetSymbolStats();

            _tradeControl.Trade += TradeControlOnTrade;
            ChartManager.ActiveFrameChanged += _ => SetSymbolStats();
        }

        private void TradeControlOnTrade(object sender, TradeEventArgs e)
        {
            ExecuteMarketOrder(e.TradeType, e.SymbolName, e.Volume);
        }

        private void SetSymbolStats()
        {
            if (ChartManager.ActiveFrame is not ChartFrame chartFrame)
                return;

            _tradeControl.Symbol = chartFrame.Symbol;
            _symbolStatsControl.Symbol = chartFrame.Symbol;
        }
    }
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
import clr
clr.AddReference("cAlgo.API")

from cAlgo.API import *

class TradeWatchTabSample():
    def on_start(self):
        tab = api.TradeWatch.AddTab("Active Chart Symbol Stats")

        panel = StackPanel()
        panel.Orientation = Orientation.Vertical
        panel.HorizontalAlignment = HorizontalAlignment.Center

        self.symbolStatsControl = SymbolStatsControl()
        self.symbolStatsControl.Margin = Thickness(10)
        self.tradeControl = TradeControl(self.on_trade)
        self.tradeControl.Margin = Thickness(10)

        panel.AddChild(self.symbolStatsControl.content)
        panel.AddChild(self.tradeControl.content)

        tab.Child = panel

        self.set_symbol_stats()

        api.ChartManager.ActiveFrameChanged += lambda _ : self.set_symbol_stats()

    def on_trade(self, args):
        api.ExecuteMarketOrder(args["tradeType"], args["symbolName"], args["volume"])

    def set_symbol_stats(self):
        if api.ChartManager.ActiveFrame is None or isinstance(api.ChartManager.ActiveFrame.__implementation__, ChartFrame) == False:
            return;

        chartFrame = ChartFrame(api.ChartManager.ActiveFrame)
        self.tradeControl.set_symbol(chartFrame.Symbol)
        self.symbolStatsControl.set_symbol(chartFrame.Symbol)


class SymbolStatsControl():
    def __init__(self):
        self.__symbol__ = None
        self.content = StackPanel()
        self.content.Orientation = Orientation.Vertical

        self.symbolNameTextBlock = self.get_text_block()
        self.symbolPriceTextBlock = self.get_text_block()

        self.content.AddChild(self.wrap_in_horizontal_panel(self.symbolNameTextBlock, self.symbolPriceTextBlock))

        grid = Grid(10, 2)

        self.spreadTextBlock = self.get_text_block()

        grid.AddChild(self.get_text_block("Spread"), 0, 0)
        grid.AddChild(self.spreadTextBlock, 0, 1)

        self.unrealizedNetProfitTextBlock = self.get_text_block()

        grid.AddChild(self.get_text_block("Unrealized Net Profit"), 1, 0)
        grid.AddChild(self.unrealizedNetProfitTextBlock, 1, 1)

        self.unrealizedGrossProfitTextBlock = self.get_text_block()

        grid.AddChild(self.get_text_block("Unrealized Gross Profit"), 2, 0)
        grid.AddChild(self.unrealizedGrossProfitTextBlock, 2, 1)

        self.commissionTextBlock = self.get_text_block()

        grid.AddChild(self.get_text_block("Commission"), 3, 0)
        grid.AddChild(self.commissionTextBlock, 3, 1)

        self.content.AddChild(grid);

    def get_text_block(self, text = None):
        textBlock = TextBlock()
        textBlock.Margin = Thickness(3)
        textBlock.FontSize = 20
        textBlock.FontWeight = FontWeight.Bold
        textBlock.FontFamily = "Calibri"
        textBlock.Text = text
        return textBlock

    def wrap_in_horizontal_panel(self, *args):
        panel = StackPanel()
        panel.Orientation = Orientation.Horizontal

        for control in args:
            if control.Margin == Thickness(0):
                control.Margin = 3
            panel.AddChild(control)

        return panel

    def get_symbol(self):
        return self.__symbol__

    def set_symbol(self, symbol):
        if symbol is None or symbol == self.__symbol__:
            return

        self.update(symbol)

    def update(self, newSymbol):
        previousSymbol = self.__symbol__;
        self.__symbol__ = newSymbol;

        self.symbolNameTextBlock.Text = f"{newSymbol.Name} ({newSymbol.Description})"
        self.symbolPriceTextBlock.Text = f"Bid: {newSymbol.Bid}, Ask: {newSymbol.Ask}"
        self.spreadTextBlock.Text = f"{self.get_spread_in_pips(newSymbol)} Pips"
        self.unrealizedNetProfitTextBlock.Text = str(newSymbol.UnrealizedNetProfit)
        self.unrealizedGrossProfitTextBlock.Text = str(newSymbol.UnrealizedGrossProfit)
        self.commissionTextBlock.Text = f"{newSymbol.Commission} {newSymbol.CommissionType}"

        if previousSymbol is not None:
            previousSymbol.Tick -= self.on_symbol_tick

        newSymbol.Tick += self.on_symbol_tick

    def get_spread_in_pips(self, symbol):
        return (symbol.Spread * pow(10, symbol.Digits)) / (symbol.PipSize / symbol.TickSize);

    def on_symbol_tick(self, args):
        self.symbolPriceTextBlock.Text = f"Bid: {args.Bid}, Ask: {args.Ask}"
        self.spreadTextBlock.Text = f"{self.get_spread_in_pips(args.Symbol)} Pips"
        self.unrealizedNetProfitTextBlock.Text = str(args.Symbol.UnrealizedNetProfit)
        self.unrealizedGrossProfitTextBlock.Text = str(args.Symbol.UnrealizedGrossProfit)

class TradeControl():
    def __init__(self, on_trade):
        self.__symbol__ = None
        self.__on_trade__ = on_trade
        self.content = Grid(10, 2)

        self.volumeTextBox = TextBox()
        self.volumeTextBox.MinWidth = 200
        self.volumeTextBox.FontFamily = "Calibri"
        self.volumeTextBox.FontSize = 20
        self.volumeTextBox.FontWeight = FontWeight.Bold
        self.volumeTextBox.Margin = Thickness(3)

        self.content.AddChild(self.get_text_block("Volume"), 0, 0)
        self.content.AddChild(self.volumeTextBox, 0, 1);

        self.tradeTypeComboBox = ComboBox()
        self.tradeTypeComboBox.MinWidth = 200
        self.tradeTypeComboBox.FontFamily = "Calibri"
        self.tradeTypeComboBox.FontSize = 20
        self.tradeTypeComboBox.FontWeight = FontWeight.Bold
        self.tradeTypeComboBox.Margin = Thickness(3)

        self.tradeTypeComboBox.AddItem("Buy")
        self.tradeTypeComboBox.AddItem("Sell")

        self.tradeTypeComboBox.SelectedItem = "Buy"

        tradeTypeTextBlock = self.get_text_block("Trade Type")

        tradeTypeTextBlock.VerticalAlignment = VerticalAlignment.Center

        self.content.AddChild(tradeTypeTextBlock, 1, 0)
        self.content.AddChild(self.tradeTypeComboBox, 1, 1)

        executeButton = Button()
        executeButton.Text = "Execute"
        executeButton.FontFamily = "Calibri"
        executeButton.BackgroundColor = Color.Red

        executeButton.Click += self.on_execute_button_click

        self.content.AddChild(executeButton, 2, 0, 1, 2);

    def get_text_block(self, text = None):
        textBlock = TextBlock()
        textBlock.Margin = Thickness(3)
        textBlock.FontSize = 20
        textBlock.FontWeight = FontWeight.Bold
        textBlock.FontFamily = "Calibri"
        textBlock.Text = text
        return textBlock

    def get_symbol(self):
        return self.__symbol__

    def set_symbol(self, symbol):
        if symbol is None or symbol == self.__symbol__:
            return

        self.__symbol__ = symbol
        self.volumeTextBox.Text = str(self.__symbol__.VolumeInUnitsMin)

    def on_execute_button_click(self, args):
        if self.__symbol__ is None:
            return;

        volume = float(self.volumeTextBox.Text)
        tradeType = TradeType.Buy if self.tradeTypeComboBox.SelectedItem == "Buy" else TradeType.Sell

        self.__on_trade__({"volume": volume, "tradeType": tradeType, "symbolName": self.__symbol__.Name});

Customisation options

This plugin links the real-time chart context to trade execution through Trade Watch panel. The table below outlines its key components and their functions:

Parameter Description Possible values
TradeWatch.AddTab Tab configuration for the Trade Watch panel. Active chart symbol stats
StackPanel.Orientation Defines the stacking direction of UI elements. Vertical or horizontal
HorizontalAlignment Defines the horizontal alignment of the panel in the tab. Center, left, right, etc.
SymbolStatsControl.Margin Sets margin around the symbol stats control element. 10, 12, 14, etc.
TradeControl.Margin Sets margin around the trade control element. 10, 12, 14, etc.
SymbolStatsControl.Symbol Binds the symbol stats control element to a specific chart symbol. chartframe.symbol, eurusd, gbpjpy, etc.
TradeControl.Symbol Links TradeControl to a symbol for trade actions. chartframe.symbol, eurusd, gbpjpy, etc.
ChartManager.ActiveFrameChanged Event that triggers symbol stat updates when chart frame changes. _ => setsymbolstats()
TradeControl.Trade Event triggered when a trade action is taken from the control panel. tradecontrolontrade or null
ExecuteMarketOrder Executes a trade when called. e.tradetype, e.symbolname, e.volume

Use cases

The TradeWatch Tab Sample plugin provides a straightforward way to enhance cTrader by linking real-time chart context with trade execution. It supports practical applications that streamline trading workflows. Below are practical use cases that demonstrate how the plugin can enhance the trading experience.

Use case Scenario Value
Symbol lock Set the plugin tab to always display a fixed symbol like EURUSD instead of updating with each chart switch. Helps you track and trade one instrument consistently, regardless of chart context.
Chart-linked trading panel Keep the plugin synced with the active chart symbol to always show relevant stats and trading options. Lets you respond quickly to chart analysis without switching tools or panels.
Fixed-volume trade Adjust the default volume in the order handler to a fixed or preferred lot size. Simplifies execution by removing the need to adjust volume each time.
Quick-action terminal Reposition controls horizontally and centre-align for a streamlined trading panel. Enables faster access to both stats and trade buttons in compact setups.

Summary

TradeWatch Tab Sample simplifies trading workflows by combining real-time statistics and trading controls into a dedicated tab within Trade Watch. It updates automatically with the active chart, and its layout, symbol behaviour and trade settings can be customised to suit different trading styles or focus areas.

For further development details, refer to our plugin documentation.
