Risk-reward¶
The risk-reward tool allows you to quickly calculate the trade volume directly on the chart, based on the amount you are willing to risk or your desired profit target per trade.
Risk-reward typically compares the potential profit (reward) of a trade to its potential loss (risk) on a chart. The reward is visualised as the distance between the entry price and the take-profit level, while the risk is visualised as the distance between the entry price and the stop-loss level.
Risk-reward in one minute!
- Traders use risk-reward to quickly calculate the quantity or volume of their trade, and the potential profit-to-loss ratio is visualised on the chart.
- After adding risk-reward to a chart, users can choose a calculation mode to fix values for risk, reward or order/position size.
- For convenience, traders can specify the amount they are willing to risk or gain as volume in units, a percentage of their balance or a percentage of their equity.
- Traders can enter order parameters, configure protection settings and place an order with a single click.
Add risk-reward to chart¶

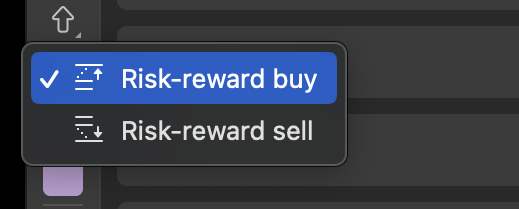

Click the Risk-reward icon in the chart instruments toolbar, then choose between the buy and sell options.

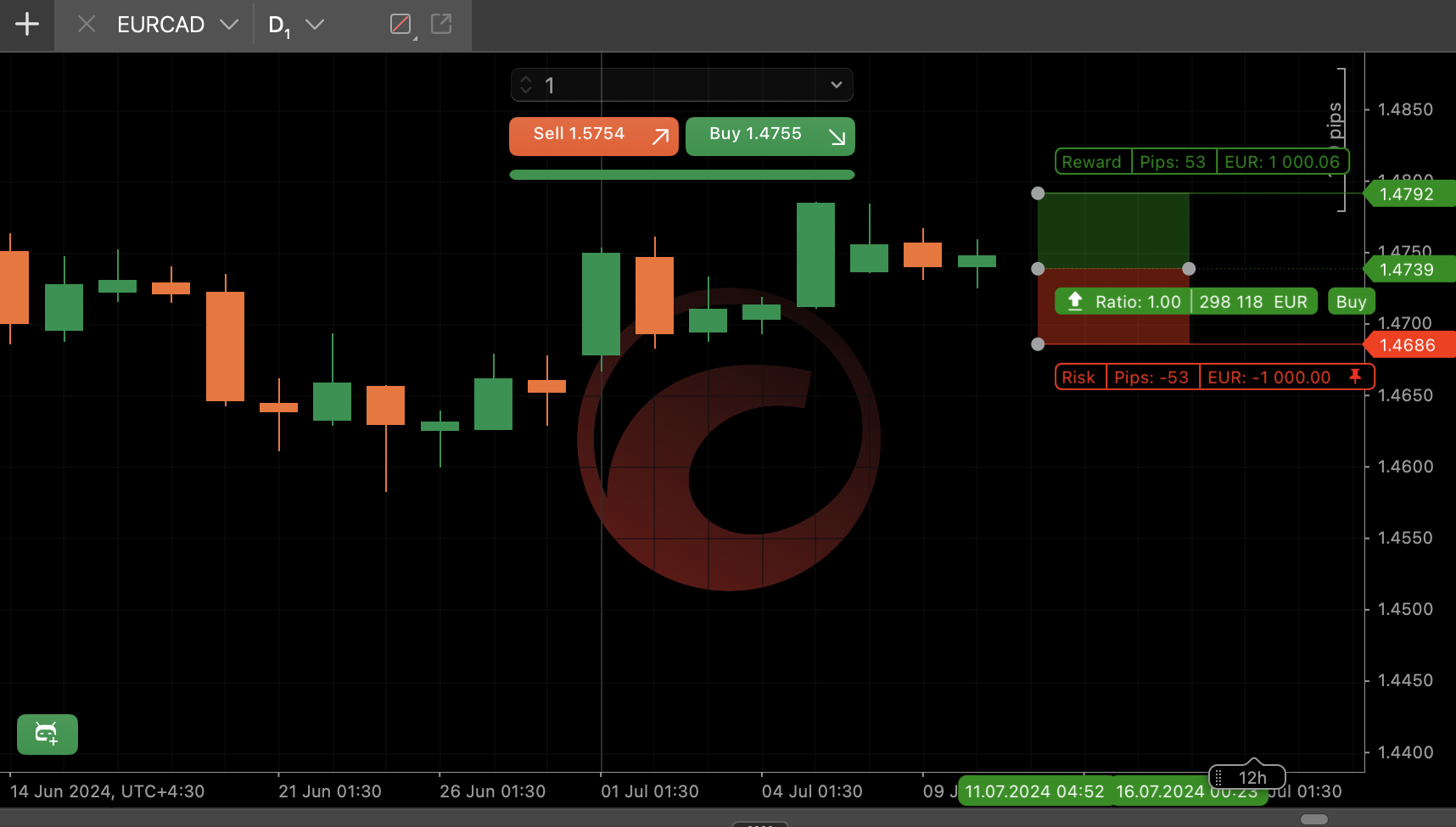

Using the crosshair, click on the trading chart to specify your desired entry price. The risk-reward object will be placed at that level.
Note
When you add or move the risk-reward object to a past period along the price axis, a possible past deal (with profit or loss) is highlighted with a deeper colour.
Adjust risk-reward parameters¶

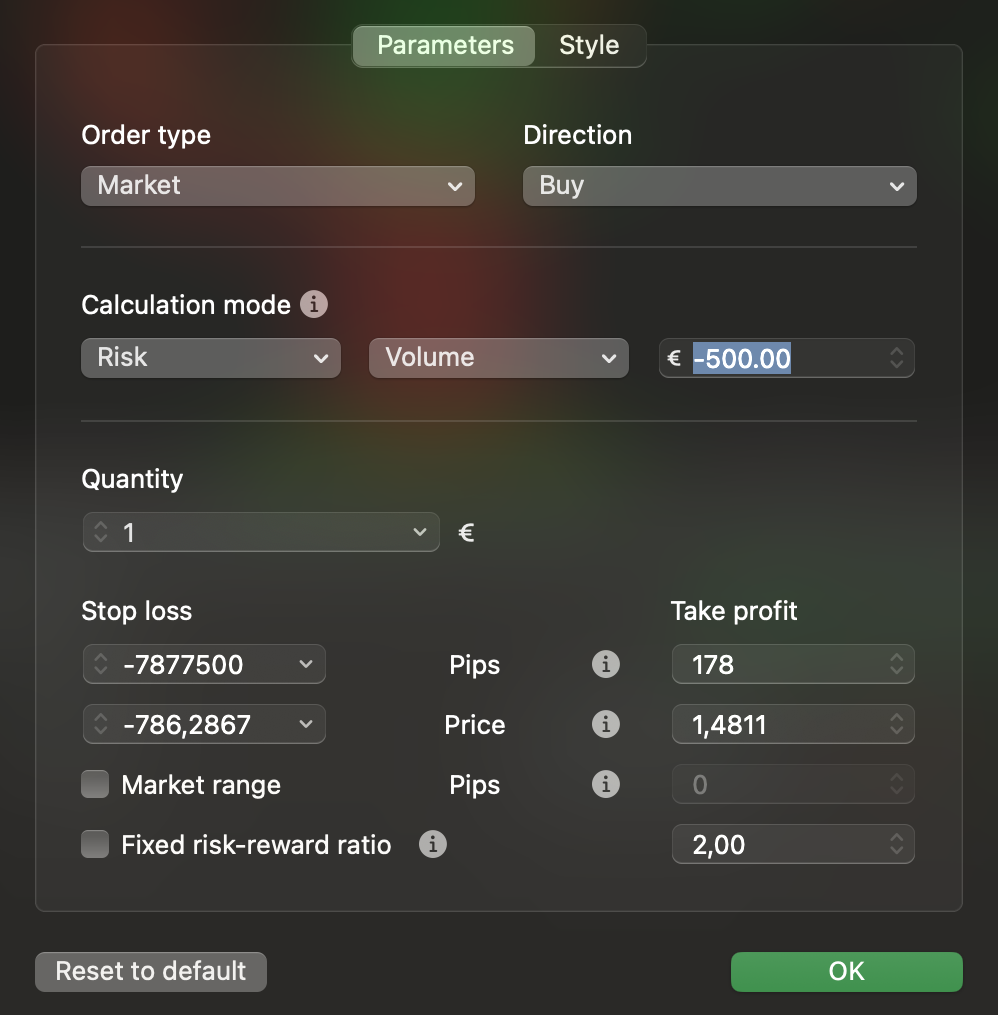

Right-click the risk-reward object to see its toolbar, then click the Settings icon.
Here, you can configure the following parameters:
| Parameter | Value | Definition |
|---|---|---|
| Order type | Market, limit, stop, stop-limit | Choose an order type. |
| Direction | Buy, sell | Choose a trade direction. |
| Calculation mode | Risk, reward, size | For risk and reward, specify the volume in units, a percentage of equity or a percentage of balance. For size, set the volume in units or the quantity in lots. |
| Quantity/volume | Lots/units | Specify your trade quantity or volume. |
| Entry price | Any value | Set the entry price (available for non-market orders only). |
| Stop loss | Pips, price | Set your desired stop-loss protection as a distance from the entry price or at a specific price level. |
| Take profit | Pips, price | Set your desired take-profit protection as a distance from the entry price or at a specific price level. |
| Risk-reward ratio | Any value (most traders prefer from 2 to 3) | Possible to lock the risk-reward ratio at a fixed value. |
The changes are applied immediately. Close the window by clicking OK or reset to defaults.

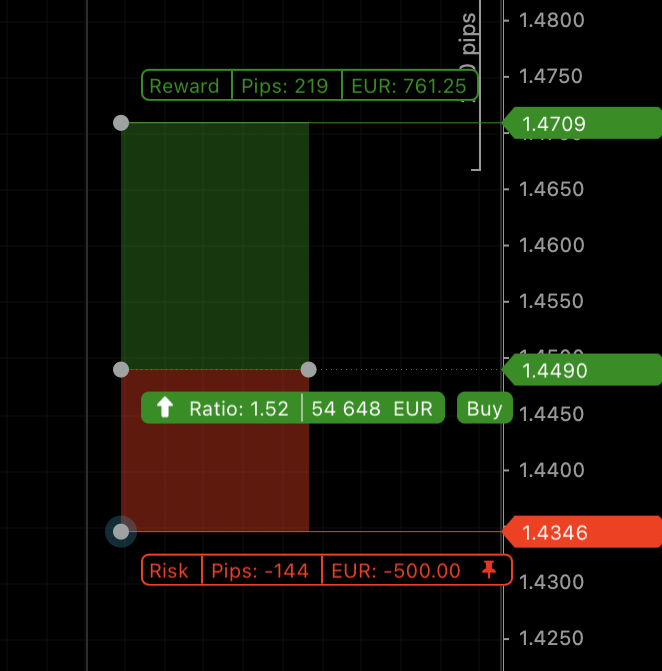

Alternatively, you can adjust some of these parameters directly on the chart. When the risk-reward object is active, move the entire object or drag its control dots along the price and time axes.
Use manual adjustments to do the following:
- Achieve a specific risk-reward ratio.
- Modify the entry price for non-market orders.
- Adjust the risk and reward areas, affecting stop-loss and take-profit parameters.
Note
Adjusting the risk-reward dimensions does not affect the pinned value of the selected calculation mode.
When the risk-reward ratio is fixed, dragging either the risk or reward area automatically adjusts the other area proportionally. The pinned value of the selected calculation mode remains unaffected.
Place orders with risk-reward¶
Click the Buy or Sell button on the risk-reward object to place an order with the configured parameters.
Warning
A market order is executed at the current price, regardless of the position of the risk-reward object on the chart.
Manage risk-reward objects¶

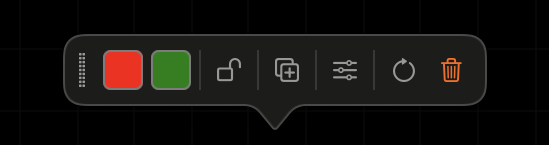

To manage a risk-reward object, right-click the object to access its toolbar with management options.
Customise style¶

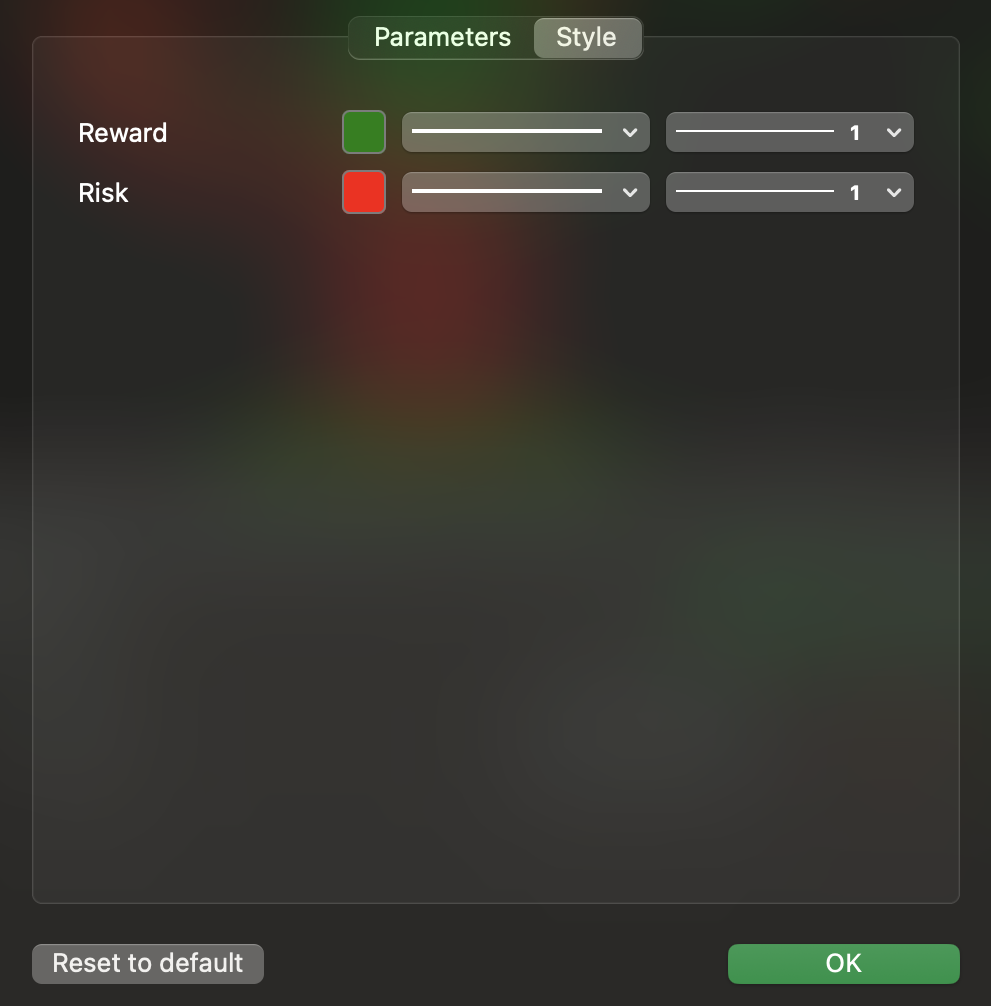

Navigate to the Style tab of the risk-reward settings. Here, you can customise the risk-reward lines and areas separately:
- Choose a colour and adjust the opacity.
- Select a line type.
- Set the line thickness.
The risk-reward toolbar allows you to quickly access the Colours icons to change the default colours and adjust the object opacity.
Duplicate¶

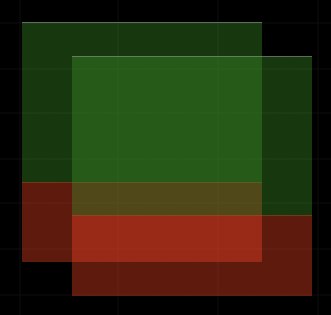

Click the Duplicate icon, and an identical risk-reward object appears on the chart.
Lock¶
Click the Lock icon to lock the risk-reward object in its current position on the chart.
Delete¶
Click the Delete icon to remove the risk-reward object from the chart.
Note

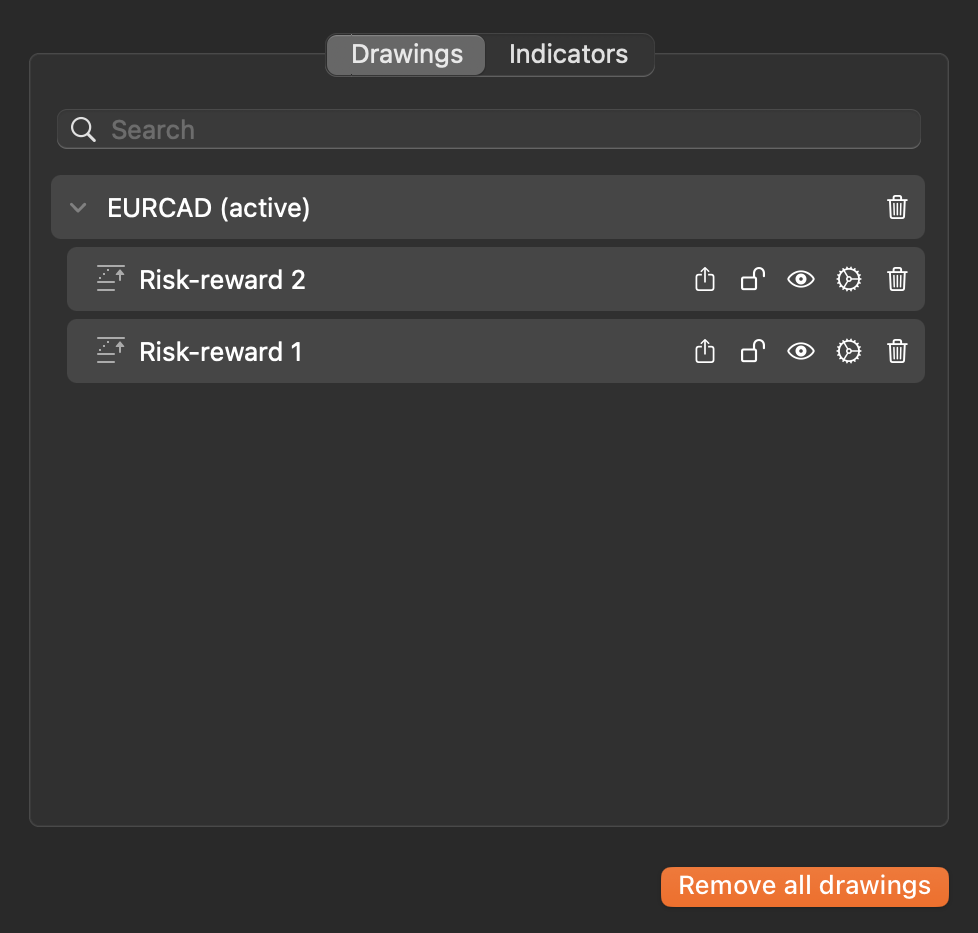

You can also manage risk-reward objects on the chart by opening Object manager and then selecting Drawings.
In addition to the actions covered above, Object manager allows you to do the following:
Move to all symbols¶
Click the Move to all symbols icon, and the risk-reward object will become visible on any symbol in the chart container.
Hide object¶
Click the Hide object icon to hide the risk-reward object on the chart.
